10x10 Del Ray Gazebo Canopy Charcoal Frame Tan Cover

10x10 Del Ray Gazebo Canopy Charcoal Frame Tan Cover is rated 2.4 out of 5 by 5.
  • y_2023, m_3, d_21, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_4
  • loc_en_US, sid_22514, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 13.22ms
  • REVIEWS, PRODUCT
Model #:
22514
$289.99
In stock
Jump to a section...
Accessories
Product Overview
Specifications
Manuals/Schematics

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

Additional Resources

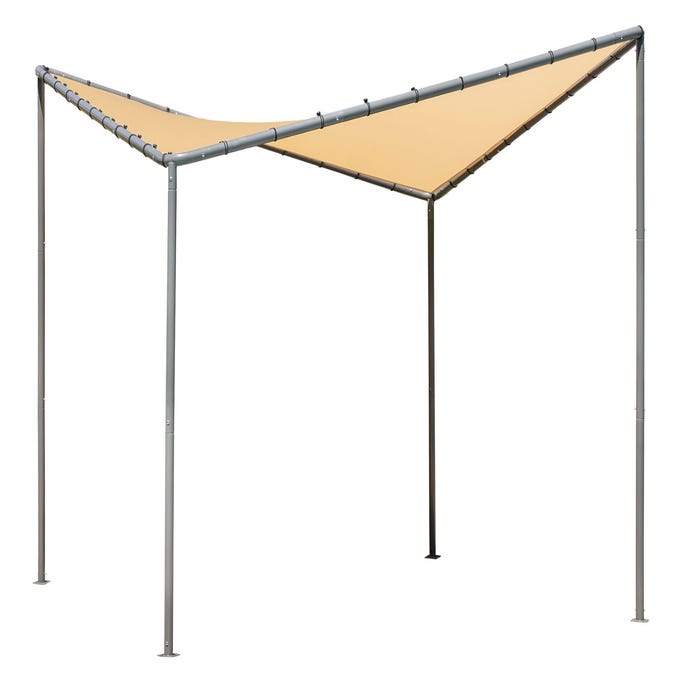

The Shelterlogic Del Ray Gazebo 10 ft. x 10 ft. is a heavy duty sophisticated shade solution. Outstanding quality construction makes an elegant shade product at an affordable price. The Del Ray is perfect for patios, backyards, camp sites, and decks offering durable seasonal shade protection. A long-lasting 300-D water-resistant cover is CPAI-84 and Sec.6 fire-rated and protects against harmful UVA and UVB rays. The tan cover attaches easily with perimeter bungee cords. Strong carbon 2 in. steel tubing is powder coated in charcoal gray to resist chipping, peeling, corrosion, and rust. The Del Ray Gazebo is sturdy and stable with a bolt-connected and welded T-frame. Includes temporary spike anchors and all hardware. Assembles easy - no added parts needed.

  • BUILT STRONG-- This gazebo canopy is built with a 2” steel frame with premium powder coat finish for years of outdoor use.
  • RESISTANT CANOPY - The heavy duty durable fire rated 300D gsm polyester cover offers protection from harmful outdoor weather elements .
  • RUGGED - The bolted connections offers strength and rigidity for years of use.
  • EASY COVER ASSEMBLY - The canopy cover is easily installed with bungees that encircle the cross beams.
Specifications
Specifications
Product Details
SKU22514
Product Overview
ManufacturerShelterLogic
SeriesDel Ray
MaterialPolyester 300 Denier
ColorTan
Dimensions
Width10 ft.
Length10 ft.
Height8.5 ft.
Size10 ft. x 10 ft. x 8.5 ft.
Total Storage Area 107.9 sq. ft.
Total Storage Volume738.63 cu. ft.
Assembled Exterior Dimensions Width124.65 in.
Assembled Exterior Dimensions Depth124.65 in.
Assembled Exterior Dimensions Height99.16 in.
Assembled Interior Dimensions Width120.71 in.
Assembled Interior Dimensions Depth124.65 in.
Assembled Interior Dimensions Height97.19 in.
Wall Height74.39 in.
Warranty/Certifications
Proposition 65No
Prop65 Warning

Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov

Reviews
Rated 3 out of 5 by from Does not hold up well to heavy rain I love the design and it held up pretty well to winds and such. However, it does not hold up well at all to heavy rain. The design should have allowed the rain to run off, but instead it pooled in the middle and I had to keep going out to push up on where the water collected to drain it off. We had an exceptionally large rainfall a month or two ago which caused the water to collect at a faster rate than I could drain it, which eventually caused 3 of the 4 sides of the cover to separate from the edges, destroying the cover. When I went to check the tag for the reorder number, it only shows "80". I believe it is supposed to have more numbers on it. It is a shame it didn't hold up well because I love the design of the canopy and the way it covers the area. I would still recommend it but be wary if it rains a lot.
Date published: 2021-09-25
Rated 2 out of 5 by from Poor design As in other reviews, it sags terribly when it rains. I’m currently working on better rigging to prevent the sag but may be fighting a losing battle.
Date published: 2023-02-04
Rated 1 out of 5 by from Bad Design I had put this up this spring in anticipation of usage in the summer and after a few rainy days it has completely ripped apart. The design did not consider drainage and water pools and bellies in the middle creating excess weight that it cannot sustain. Had I known this in advance or read some of the reviews that are stating the same thing I would have punctered a grommet or raised one of the poles to accommodate for this flaw. I have had this in storage for 3 years and just put it up so it's out of warranty and nothing I can do.
Date published: 2022-05-19
Rated 1 out of 5 by from Doesn't hold up under a bit of rain I intentionally waited to install the canopy canvas' about a month after the frames were up. After installing the canvas', within a week 2 out of the 4 purchased had ripped off of the grommets due to rain pooling in the center of the canvas. It doesn't help that the company I ordered from sent me the wrong color canvas to begin with and offered nothing to correct the situation. So now I have the wrong colored canvas, 2 of which are destroyed. Filled a warranty claim and received no confirmation that it went through.
Date published: 2021-06-03
  • y_2023, m_3, d_21, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_4
  • loc_en_US, sid_22514, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 2.45ms
  • REVIEWS, PRODUCT
Questions & Answers

Is anyone complaining about rain not draining off the cover, but instead forming a pool?

Asked by: Cocomo
I have had the same issue. We would have to drain the water as it formed a pool in the middle, but one day it rained so hard that I couldn't drain all of it off in time and the edges all ripped except for one side. I went to order a new cover, and all that was on the tag as far as a reorder number was "80". It was like they forgot to print the rest of the tag. I'm going to be ordering a replacement cover soon, but this was less than a year and it was pretty much destroyed when the water should have just ran off.
Answered by: CraigInFla
Date published: 2021-09-25

Is there a replacement canopy for this unit?

Asked by: David01
Hi David, Yes, for pricing and availability please give us a call at 1-800-932-9344.
Answered by: Customer Service
Date published: 2021-06-08
