Save  20%  off  Arrow sheds and garages  - prices as marked.

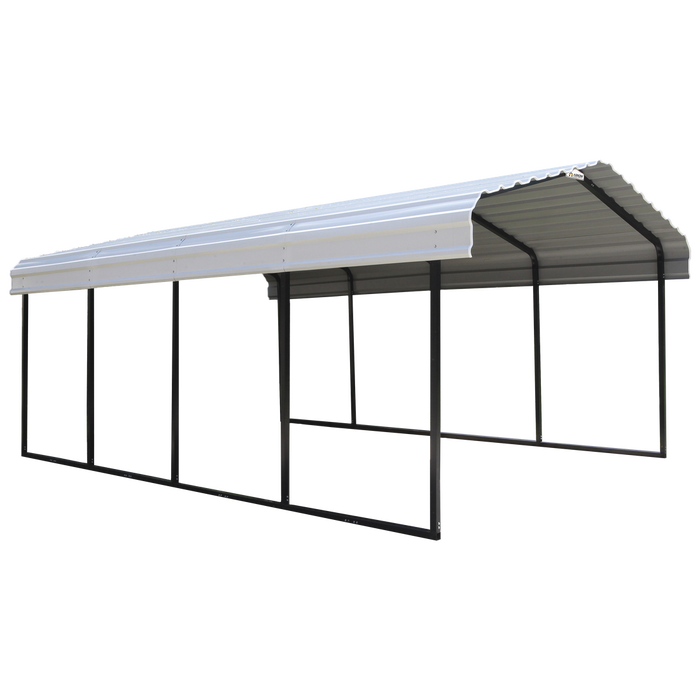

Arrow Carport, 12 ft. x 20 ft. x 7 ft. Eggshell

Arrow Carport, 12 ft. x 20 ft. x 7 ft. Eggshell is rated 4.3 out of 5 by 30.
  • y_2023, m_2, d_5, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_12, tr_18
  • loc_en_US, sid_CPH122007, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 6.46ms
  • REVIEWS, PRODUCT
Model #:
CPH122007
$1,949.99
In stock
The 12 x 20 ft. Carport from Arrow is a newly re-designed carport and multi-use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel roof with horizontal panels, and an industrial steel frame that has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine - it doesn't matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.
Jump to a section...
Accessories
Product Overview
Specifications
Manuals/Schematics

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

Assembly Manual

Download PDF

Additional Resources

The 12 x 20 ft. Carport from Arrow is a newly re-designed Carport and multi-use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel roof with horizontal panels, and an industrial steel frame that has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine - it doesn't matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.
  • Industrial grade steel frame resists corrosion
  • The 29-gauge painted galvanized steel roof offers corrosion and rust resistance. The roof features horizontal panels and rounded eaves for additional protection from the elements
  • Slip-fit frame connection for easier assembly
  • This all steel Carport from Arrow has a wind speed rating of 100 mph and snow/ground load rating of 35 psf for tough protection against the elements
  • Offers a 10-year limited warranty
  • The 12 x 20 ft. Carport from Arrow is a multi-use shelter that protects vehicles, boats, tractors, and even picnic areas.
  • Offers up to 234 sq. ft./1792 cu. ft. of storage and shelter area
Specifications
Specifications
Product Details
SKUCPH122007
Specifications
Assembly ManualDownload (PDF)
Product Overview
ManufacturerArrow Storage Products
SeriesArrow Carport
StylePeak
MaterialGalvanized Steel
ColorEggshell
Frame ColorBlack
Assembly RequiredYes
Hardware KitYes
Included ItemsFrame, Cover, Hardware

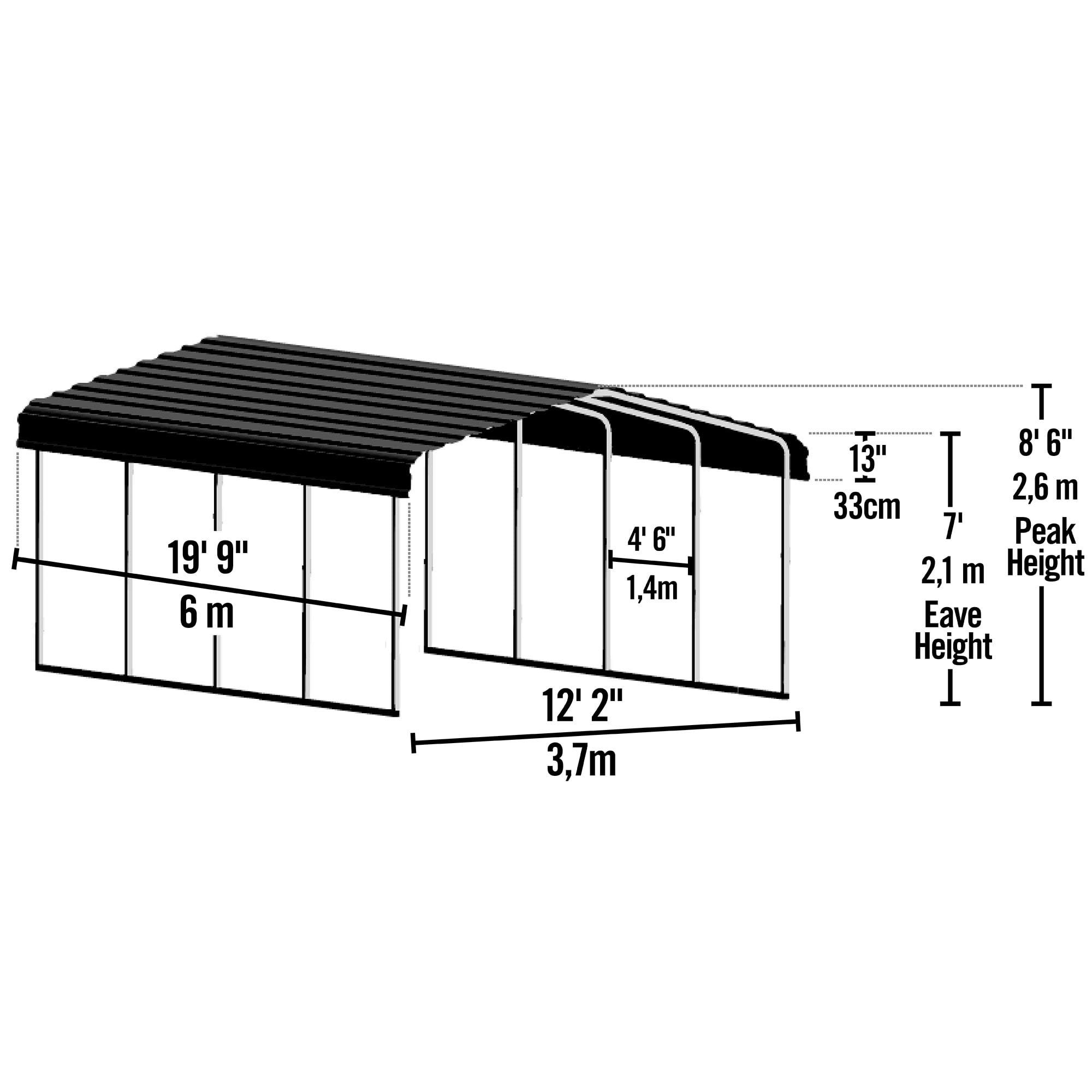

Dimensions
Width12 ft.
Length20 ft.
Height7 ft.
Size12 x 20 x 7 ft.
Total Storage Area234 sq. ft.
Total Storage Volume1792 cu. ft.
Rib Tubing Diameter2 in.
Assembled Exterior Dimensions Width156 in.
Assembled Exterior Dimensions Depth237 in.
Assembled Exterior Dimensions Height102 in.
Assembled Interior Dimensions Width142 in.
Assembled Interior Dimensions Depth237 in.
Assembled Interior Dimensions Height100 in.
Door / Entrance Width Bottom142 in.
Door / Entrance Height Center82 in.
Door / Entrance Height Outside82 in.
Wall Height84 in.
Peak Height8 ft. 6 in.
Warranty/Certifications
Warranty10 Year Limited
Wind and Snow RatedYes
Wind Speed Rating100 MPH
Snow Load Rating35 PSF
Proposition 65No
Related Posts
Prop65 Warning

Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov

Reviews
Rated 5 out of 5 by from Patient This was returned and you now owe me money...if you would like a good review and future business I would take care of that please
Date published: 2022-12-09
Rated 5 out of 5 by from Good enough for West Texas Carport was easily assembled by our team, really better to have three IR more to help assemble it. So far it’s withstood the wind gusts of the Permian Basin in West Texas and helped keep the dust off our equipment, which has been a big help.
Date published: 2022-12-09
Rated 5 out of 5 by from Love it! Really surprised on the quality and substance of the frame.
Date published: 2021-05-10
Rated 5 out of 5 by from Carport great addition Very nice kit to assemble, very solid frame. Was a very easy build handled by 2 people. Compact shipping package came in 3 boxes, well wrapped with extra protection, all parts were in excellent shape, no marks Thx PB
Date published: 2021-04-25
Rated 5 out of 5 by from Perfect for our boat Storage! Very well built! Perfect to put the boat under to keep it out of the Arizona sun. Can't say much about rain seeing that we only get around 6" a year. However, This is a great buy and very sturdy! I highly recommend this product!
Date published: 2021-02-14
Rated 5 out of 5 by from Arrow Carport Arrived in good order, installation is as expected
Date published: 2020-11-11
Rated 5 out of 5 by from Good enough to cover what I wanted. The carport was simple to put together with a another person. Instructions were simple to follow and parts Cleary marked.
Date published: 2019-07-20
Rated 5 out of 5 by from Very happy I just had this assembled, I very happy with it. It looks great!
Date published: 2019-05-05
  • y_2023, m_2, d_5, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_12, tr_18
  • loc_en_US, sid_CPH122007, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.28ms
  • REVIEWS, PRODUCT
Questions & Answers

Is there height extensions available?

Asked by: Bitsy311
Hello, Yes, we do offer the vertical height extensions that'll make the Carport 9'ft high. To place order or you wish to discuss this in more detail, please contact us at 1-800-932-9344. Thank you
Answered by: Customer Service Rep
Date published: 2023-01-27

are replacement roof panels available (egg shell white) for CPH122007?

Asked by: Dan5437
Hello Dan, Yes, replacement panels are available. To place an order, please contact us at 1-800-932-9344. Thank you
Answered by: Customer Service Rep
Date published: 2023-01-13

How long should it take 2 guys to assemble it ?? 12 ft. W x 29 ft. D x 7 ft. H Charcoal Galvanized Steel Carport

Asked by: brian003
Hello Brian, Assembly time depends on a variety of factors, including roof design, tools available, DIY skill, and the pace at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base and assume two or more people working on the assembly. Generally, you should plan on at least one day working with someone who can assist you. We are also available for assembly support 7-days a week at 1-800-851-1085 (press 1). https://www.shelterlogic.com/arrow-sheds/maintenance/assembly-tips/ Thank you
Answered by: Customer Service Rep
Date published: 2022-12-27

How do I but the extension kit for the 10x15x7 carport kit and how much is it

Asked by: Trav101
Hello, For pricing and availability, please contact us at 1-800-851-1085 (press 1). Thank you
Answered by: Customer Service Rep
Date published: 2022-10-26

Do you guys make a enclosure kit for the cphc122909 it’s the 12x29x9 metal carport charcoal color

Asked by: Tony4576
Hello Tony, Unfortunately, we do not offer an Enclosure Kit for this size at this time. We advise you to keep an eye on our website for future releases. To discuss this in more detail, please feel free to start a live chat or give us a call at 1-800-932-9344. Thank you
Answered by: Customer Service Rep
Date published: 2022-09-28

My city requires a structural engineer sealed drawing of the carport. Do you offer this kind of documentation to give my city for a building permit?

Asked by: CAM1962
Hello, We will not be able to provide engineering specifications drawings for the Arrow Carport. We do apologize for the inconvenience. For the most part, permits are not required because these Carports are considered temporary structures, but it is best to check in with your town. If you have any other questions or concerns, please feel free to call us at 1-800-851-1085 (press 1). Thank you
Answered by: Customer Service Rep
Date published: 2023-02-01

I am pretty handy. Can 1 person put this 12 x 20 x 7 Carport together? Thanks!

Asked by: AJ1331
Hello, Thank you for your question. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill, and the pace at which you work. Guidelines for each carport assembly are approximate AFTER completion of the frame and assume two or more people working on the assembly. Generally, you should plan on at least one day working with someone who can assist you. Please note we are also available for assembly support 7-days a week at 1-800-851-1085 (press 1). Thank you
Answered by: Customer Service Rep
Date published: 2022-08-26

Part A, #804860, the self-tapping screws - Can you tell me what size these are? Length, Diameter, Threads, etc.

Asked by: carmen
Hi Carmen, This screw is #12-14 x 1 inch self drilling screw and has a thread count of about 14. Hope that helps!
Answered by: Customer Service
Date published: 2022-08-16
