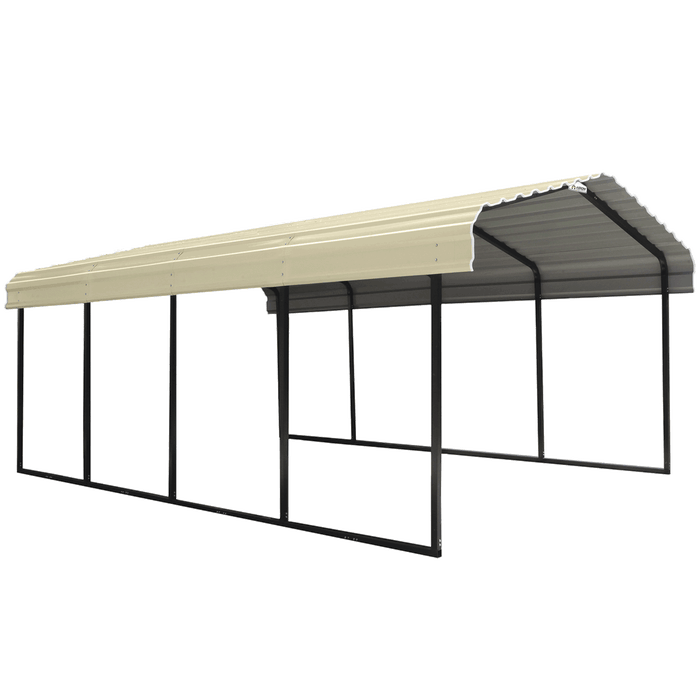

Arrow Carport, 12 ft. x 20 ft. x 7 ft. Vinyl Almond
Jump to a section...
Do you have questions about this product? Our Customer Service team is here to help!
The 12 x 20 ft. Carport from Arrow is a multi-use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel horzontal roof coated with vinyl paint for ultimate corrosion protection. Our industrial steel frame has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine - it doesn't matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.
- Industrial grade steel frame resists corrosion
- The 29-gauge galvanized steel roof is coated in a vinyl paint that offers superior corrosion and rust resistance.
- Horizontal roof panels and rounded eaves offer additional protection from the elements
- Slip-fit frame connection for easier assembly
- This all steel Carport from Arrow has a wind speed rating of 100 mph and snow/ground load rating of 35 psf for tough protection against the elements
- The 12 x 20 ft. Carport from Arrow is a -use shelter that protects vehicles, boats, tractors, and even picnic areas.
- Offers up to 234 sq. ft./1792 cu. ft. of storage and shelter area
|Manufacturer||Arrow Storage Products|
|Included Items||Frame, Panels, Hardware|
|Size||12 ft. x 20 ft. x 9 ft.|
|Total Storage Area||234 sq. ft.|
|Total Storage Volume||1792 cu. ft.|
|Rib Tubing Diameter||50 mm|
|Assembled Exterior Dimensions Width||146 in.|
|Assembled Exterior Dimensions Depth||237 in.|
|Assembled Exterior Dimensions Height||102 in.|
|Assembled Interior Dimensions Width||142 in.|
|Assembled Interior Dimensions Depth||237 in.|
|Assembled Interior Dimensions Height||100 in.|
|Door / Entrance Width Bottom||142 in.|
|Door / Entrance Height Center||82 in.|
|Door / Entrance Height Outside||82 in.|
|Wall Height||84 in.|
|Peak Height||8 ft. 6 in.|
|Fire Rated||CPAI-84 Compliant, NFPA 701 Compliant|
|Wind and Snow Rated||Yes|
|Wind Speed Rating||100 MPH|
|Snow Load Rating||35 PSF|
Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov
Questions & Answers
Will 2 cars fit in this?
Hello, Thank you for your question. This Carport is designed for one vehicle only. However, you can opt for the 20x20 Arrow carport instead: https://www.shelterlogic.com/arrow-carport Thank you
Date published: 2022-07-05
what is the gauge of the framing? what is the ga of the panels?
Hello, The 29-gauge galvanized steel roof is coated in a vinyl paint that offers superior corrosion and rust resistance. The carport frame is 15 gauge. If you have any other questions or wish to discuss this in more detail, please feel free to contact us at 1-800-932-9344. Thank you
Date published: 2022-05-13
are there different color options, specifically is there a dark green or evergreen option
Hello Mike, Thank you for your question. The color options to the Vinyl Arrow Carport: Almond, light Grey, and Dark Grey. If you have any other questions, please feel free to start a live a chat or contact us at 1-800-932-9344. Thank you
Date published: 2022-05-11
How much does this weigh? How hard is it to assemble? Can 2 people assemble this and is any special equipment needed to assemble? Can you put the canvas sides on after carport is assembled?
Hello Susan, The Carport weight is approximately 600 (lbs). Assembly time depends on a variety of factors, including roof design, tools available, DIY skill, and the pace at which you work. Guidelines for each carport assembly are approximate AFTER completion of the frame and assume two or more people working on the assembly. Generally, you should plan on at least one day working with someone who can assist you. And, yes, the enclosure-kit accessory is to be installed on the carport after the carport has been assembled and anchored down. Please note we are also available for assembly support 7 days a week at 1-800-851-1085 (press 1). Thank you
Date published: 2021-09-08
