Arrow Carport, 20 ft. x 20 ft. x 7 ft. Eggshell
Arrow Carport, 20 ft. x 20 ft. x 7 ft. Eggshell is rated out of 5 by 3.
Jump to a section...
Do you have questions about this product? Our Customer Service team is here to help!

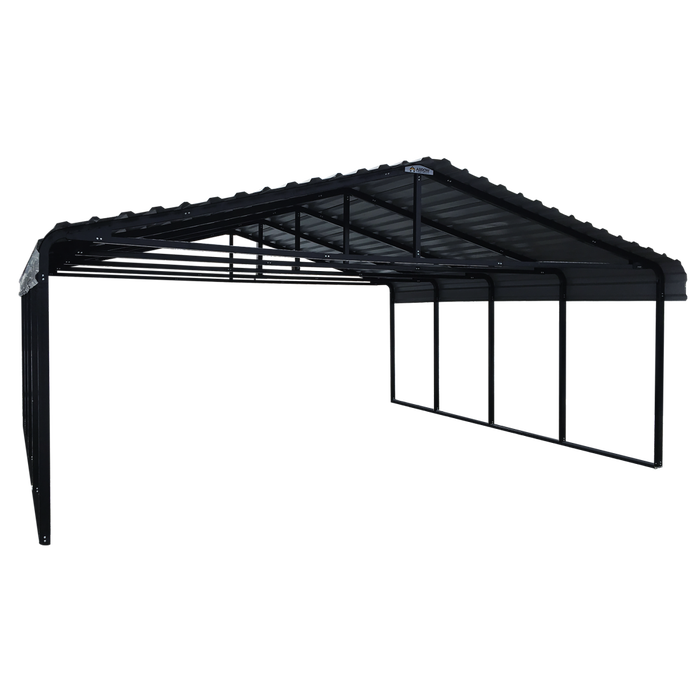

The all-steel Carport from Arrow is a convenient, all-weather shade and shelter solution that's versatile and practical. Use the Carport to shade your vehicle, truck, ATV, outdoor equipment, rest areas or picnic areas. Great for storing boats, picnic and outdoor furniture and summer toys in the off-season. Each Arrow Carport is wind and snow load rated Carport, meaning they are designed to take on tough weather conditions and able to stand up to accumulated snow fall. Its galvanized steel roof is made to protect against corrosion, rust and the elements and features an attractive Eggshell roof. The Carport is assembled on our tough all-steel, powder coated 2 in. tube frame, made to reinforce stability and strength in the structure. The premium powder coating provides corrosion and rust resistance. Easy to install, the Carport comes with slip-fit connections with pilot holes and self-drilling screws making this unit easy to build straight out of the box.
- 20 x 20 ft. All-Steel Carport
- Built strong with a 2x2 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability.
- Black powder coated finish for superior rust and corrosion resistance.
- Designed for easy installation thanks to slip-fit connections and self-drilling screws.
- Tough, horizontal roof-panels made from 29-gauge galvanized steel for superior corrosion resistance.
- Attractive eggshell roof with a black, powder coated frame.
- Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area.
- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame and unit according to local building codes and ordinances. These have been calculated using combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser.
|Assembly Manual||Download (PDF)|
|Manufacturer||Arrow Storage Products|
|Included Items||Powder Coated Frame, Electro-Galvanized Roof Panels, Fasteners, Anchors|

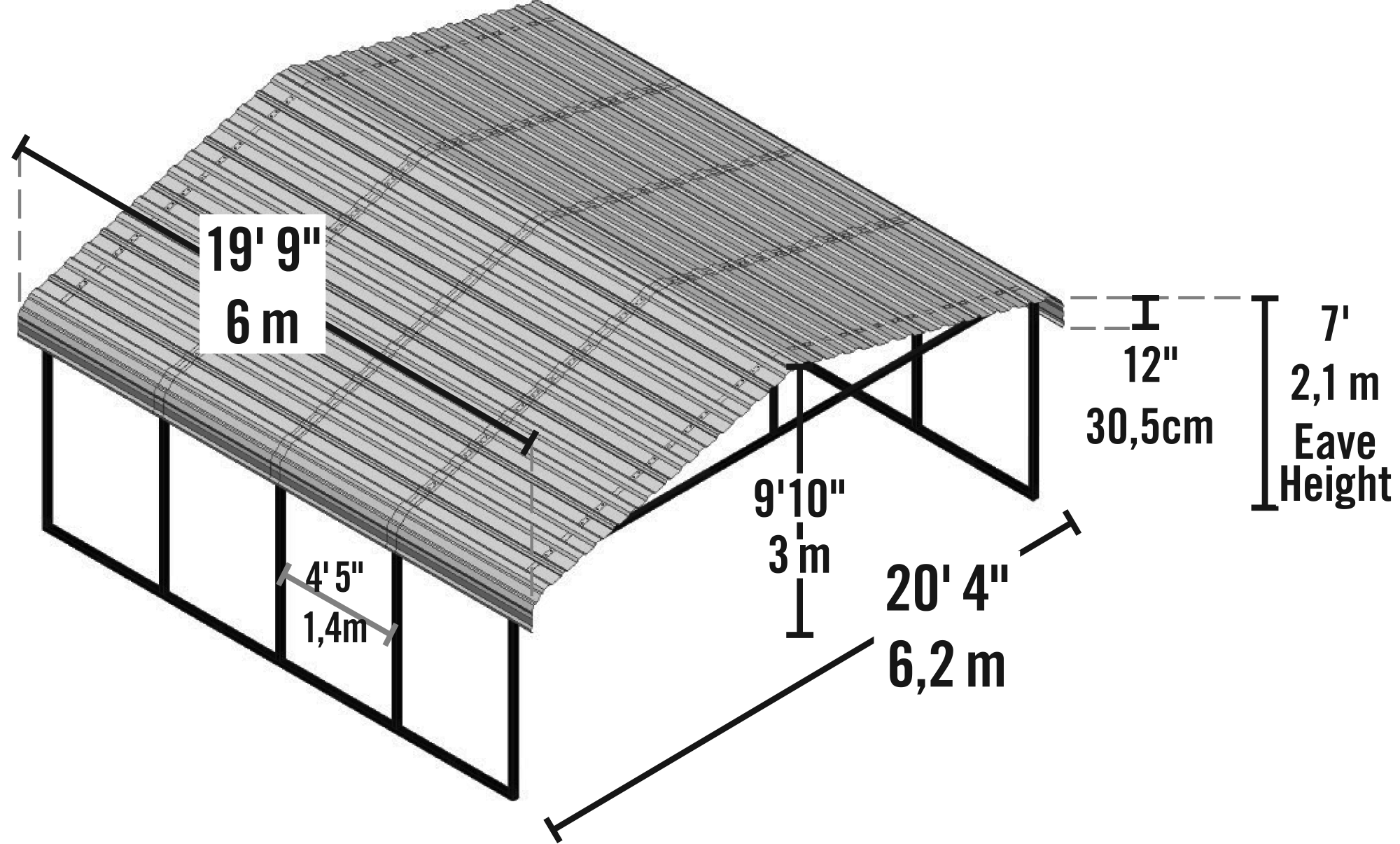

|Size||20 ft. x 20 ft. x 7 ft.|
|Total Storage Area||390 sq. ft.|
|Total Storage Volume||3234 cu. ft.|
|Assembled Exterior Dimensions Width||243 in.|
|Assembled Exterior Dimensions Depth||237 in.|
|Assembled Exterior Dimensions Height||118 in.|
|Assembled Interior Dimensions Width||237 in.|
|Assembled Interior Dimensions Depth||237 in.|
|Assembled Interior Dimensions Height||115 in.|
|Door / Entrance Width Bottom||237 in.|
|Door / Entrance Height Outside||84.35 in.|
|Wall Height||84 in.|
|Warranty||10 Year Limited|
|Wind Speed Rating||100 MPH|
|Snow Load Rating||35 PSF|
Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov
Rated 5 out of 5 by KJL from Sturdy and effective A good, solid carport. Some assembly required! Did take numerous people to assemble the carport. I am happy with finished product. Looks good and is large enough to fit 2 cars comfortably.
Date published: 2021-06-11
Rated 5 out of 5 by RDemoe from Great product, well made at a very good price Strong structure that is a quality product that will take 2/3 people to install. The major issue we had was getting the roof panels on square.
Date published: 2021-01-17
Rated 4 out of 5 by Hey Man from Bring help, clamps, and 21 ft Z purlin The elbow pieces may not have exactly the proper degree of angle. Just a degree or two over- or under-bent will need to be held in position with clamps attaching all trusses to a straight edge, otherwise will be very difficult to get the tin even started square and straight. Failure to get the skeleton square and straight and centered will result in the outer walls wavy and what I'd say "Looks like a cow's behind sewn up with a grapevine"
Date published: 2021-06-02
Questions & Answers
do you install the carport or will I have to do it myself?
Hello, Thank you for your question. We currently do not offer installation. Please know that our products are designed as DIY projects in hopes of saving on installation costs. We try to make our manuals as detailed as possible to prevent mistakes. You can always visit our website for assembly tips or call us for assembly support 7-days a week at 1-800-851-1085 (press 1). Thank you for your interest in ShelterLogic products and have a great day!
Date published: 2022-09-23
I live in an area that has occasional very high winds (80 mph+). Are in the included earth anchors likely to be sufficient for this amount of wind or should I have additional anchors?
Hello Alan, Thank you for your question. It all depends on your terrain. If installing the Arrow Carport in the dirt, we recommend our Easy Hook Anchors, which is best for anchoring in any substrate, including grass, rocky soil, gravel, and asphalt. We recommend one anchor per leg/post - and acquiring the best anchors suitable to your terrain. The Arrow Carport comes with Easy Hook anchors. If you are anchoring the carport on concrete/slab mounting, we recommend at least 3/8-inch diameter x 5-inch-long concrete expansion lag with a minimum 2-inch embedment. If you have any other questions or wish to discuss this in more detail, please feel free to contact us at 1-800-851-1085 (press 1). Thank you
Date published: 2022-09-02
Can they be anchored to concrete and what do I need or does it come with concrete anchors?
Hello Steph, Thank you for your question. The Arrow Carport Does Not come with concrete anchors, and the Carport can be anchored down into concrete. If you are anchoring the carport on concrete/slab mounting, we recommend at least 3/8-inch diameter x 5-inch-long concrete expansion lag with a minimum 2-inch embedment. If you have any other questions or wish to discuss this in more detail, please feel free to contact us at 1-800-851-1085 (press 1). Thank you
Date published: 2022-06-08
How are they anchored to the ground
Hello, If installing the Arrow Carport in the dirt, we recommend our Easy Hook Anchors, which is best for anchoring in any substrate, including grass, rocky soil, gravel, and asphalt. The Arrow Carport comes with Easy Hook anchors. If you have any other questions or would like to discuss this in more detail, please feel free to contact us at 1-800-851-1085 (press 1). Thank you
Date published: 2022-05-16
Shipping to Hilo Hawaii 96720 please
Hello, To get an accurate shipping cost, we will need gather more information from you. Please give us a call and we can calculate the shipping for you. We are available 7-days a week at 1-800-932-9344. Thank you
Date published: 2022-05-16
How many boxes does this 20x20 carport come,we purchase one at Lowe’s and only have 3 boxes just legs
Hello, There should be a total of 6 boxes. Please call our customer service line so we can gather more information and offer the best solution we possibly can. We are available 7 days a week at 1-800-851-1085 (press 1). We are looking forward to assisting you!
Date published: 2022-06-11
