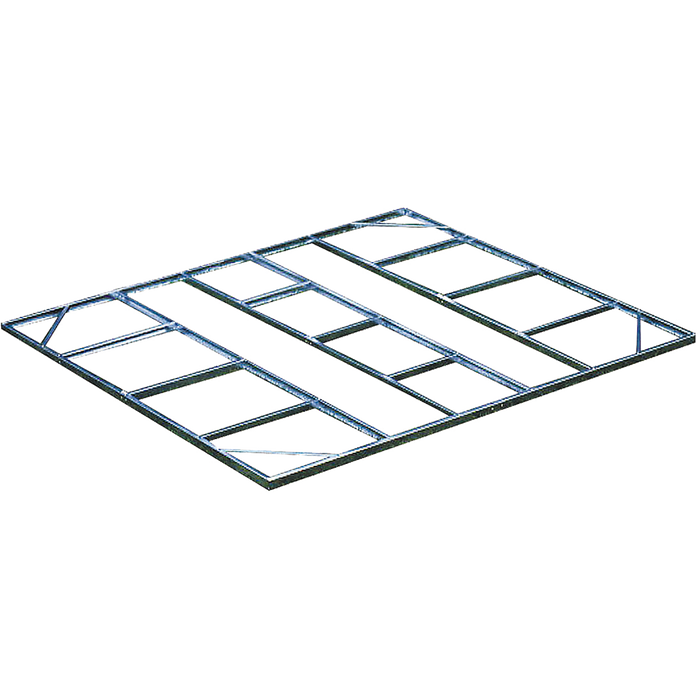

Base Kits for Arrow Sheds 10 ft. x 12 ft., 10 ft. x 13 ft., and 10 ft. x 14 ft.
Base Kits for Arrow Sheds 10 ft. x 12 ft., 10 ft. x 13 ft., and 10 ft. x 14 ft. is rated out of 5 by 10.
Jump to a section...
Do you have questions about this product? Our Customer Service team is here to help!
Starting off square and level is essential to a successful shed assembly and we recommend that you consider a base kit to self-square the shed and help level the site. Base kits are available for the majority of Arrow sheds. The base kit must be assembled with your selected floor finishing option before you start to build your shed. Use the flooring material that best suits your needs, such as wood, patio blocks, or gravel. The base kit may also be used as a form for pouring concrete. Find the base kit size for your shed.
- The Arrow base kit is made of durable hot-dipped electro-galvanized steel
- Keeps building and stored items off the ground
- Easy to install
- Includes all hardware
- Does not include floor all finishing materials (If finishing with wood flooring, use exterior-grade plywood, measured to base kit dimensions.)
|Assembly Manual||Download (PDF)|
|Manufacturer||Arrow Storage Products|
|Material||Hot Dipped Galvanized Steel|
|Size||10 ft. x 12 ft., 10 ft. x 13 ft., 10 ft. x 14 ft.|
|Assembled Exterior Dimensions Width||120.06 in.|
|Assembled Exterior Dimensions Depth||142.31 in.|
|Assembled Exterior Dimensions Height||2 in.|
Rated 5 out of 5 by Orangechevy71 from Easy to put together Well worth the money keeps the shed floor off the ground and looks better too.
Date published: 2018-10-02
Rated 5 out of 5 by srtedder from Great Product! Wouldn't build an arrow shed without it! So easy!!
Date published: 2017-07-07
Rated 4 out of 5 by IMAG from instructions need review; flimsy; easy assembly Super easy to assemble. Light weight.. it was too big and floppy, to flip it over alone, so I had to elevate it and slither on my back, in order to put the screws in on the bottom side. My only complaints are as follows: 1) this base is not strong enough to support weight, unless it has support under every joint. our shed had to be elevated because of water. That was very difficult to do, while keeping the shed floor level on uneven ground. (Although, I’m a novice, and this was my first shed). It bent in a few places, which we rigged with random bricks, and a lot of extra screws. 2) I don’t remember exactly what the instructions said (we put it together 6+ months ago), but the floor/ floor frame and shed frame were an issue. the instructions, and every associate I spoke with, said that the floor frame was supposed to go INSIDE the shed, and then the plywood ontop. I know I’m a novice, but I’m no dummy. There was NO WAY that floor frame would go inside… it was the exact same size as the shed. So we had to assemble the shed ontop of the frame. Thankfully we hadn’t assembled the shed yet. So, order of assembly should actually be: First the floor frame, then plywood ontop of the floor frame, then the floor-shed frame (to attach the two), was assembled and mounted to the plywood… THEN we built the shed ontop of that. Hope this helps!
Date published: 2023-03-20
Rated 4 out of 5 by Dave F from 8x10 base kit Pieced come together nicely and made a nice square frame for my shed. The only issue I had was that all the pieces are made the same size so when you have to slide one into the other it causes a bulge and makes it so the holes don't want to line up the best and the joint bulges.
Date published: 2021-05-24
Rated 3 out of 5 by Bill the Builder from Wanted the 5x7 but it is no longer made. I was trying to get the base kit for a 5x7 which apparently is not made any more or not available. I had to improvise a solution using the existing and cutting up the 5x4 to replace the existing base that had rusted out.
Date published: 2023-03-20
Rated 1 out of 5 by Dago from Useless Hard to level it on uneven ground, can not use pressure treated wood according to specifications!!!!???
Date published: 2022-12-08
Questions & Answers
If I use this base kit, for your 6x8 shed, with 3/4 inch plywood on top, what's the max weight I could put inside? Want to store my motorcycle inside, which weighs roughly 860lbs.
Hello Mike, Thank you for your question. It's 500 pounds Evenly Distributed. If storing a motorcycle, you will need to build a Wood Deck or pour concrete. If you have any other questions or wish to discuss this in more detail, please feel free to contact us at 1-800-851-1085 (press 1). Thank you
Date published: 2023-03-16
I have an older model #697.6822 still in the box. will this base work for this shed
Hello, Thank you for your question. Yes, the Base Kit #FDN1014 is compatible with the 10'x12' Gambrel Shed. If you have any other questions or wish to discuss this in more detail, please feel free to contact us at 1800-932-9344. Thank you
Date published: 2022-06-15
WHEN WILL FDN106 BE AVAILABLE? I HAVE BEEN WAITING FOR 5 MONTHS FOR THIS BASE KIT BUT IS NEVER IN STOCK. HELP!!
Hello, The product is on back-order. For replenishment details and to check to see when the item will be available for purchase again, please call in at 1-800-851-1085 (press 1). Thank you
Date published: 2021-12-06
When will the 10x12’ basebeback in stock?
Hello, Thank you for your inquiry. For replenishment details and to check to see when the item will be available for purchase again, please call in at 1-800-932-9344. Thank you
Date published: 2021-07-12
Is this base kit compatible with Model #NP101267? The assembly instructions for that 10'x12' model do not list the base kit as an option for a base.
Hello, Yes, the FDN1014 Base Kit will work with model NP101267. If you have any other questions or would like to discuss this in more detail, please feel free to contact us at 1-800-851-1085 (press 1). Thank you
Date published: 2021-06-16
what is the dimensions for a plywood base for a 6ft x 5ft ezee metal shed
Hello, Per the assembly instructions, the suggested wood/concrete base for this shed is listed as 68 1/2" x 56 1/2". Please note that the platform should be level and flat (free of bumps, ridges etc.) to provide good support for the building and Pressure Treated Lumber must not be used where it will make contact with your storage building. If you would like to discuss this in more detail, please feel free to call us at 1-800-851-1085 (press 1). Thank you
Date published: 2021-06-21
For a 10x6 shed, have 2 questions for FDN106 base: does every inch of base frame perimeter have to be supported by blocks and the load limit for entire Plywood floor on base is 200-300 lbs? Will you have the FDN106 in stock in near future?
Hello, There are several options for constructing the base, such as wood, gravel, and pouring concrete. Whichever choice you decide to construct the base with, the whole base kit perimeter must be fully supported because the platform needs to be level and flat (free of bumps, ridges, etc.) to provide good support for the building once you start to erect it. As for replenishment details, please call in at 1-800-851-1085 (press 1). Thank you
Date published: 2022-12-05
Will this base kit work with your Commander series sheds with swinging doors?
Hi Jim, This base kit is not compatible with our Commander series. We suggest pouring a concrete slab for that model. If you have any additional questions please feel free to give us a call at 1-800-851-1085 (press 1).
Date published: 2021-01-29
