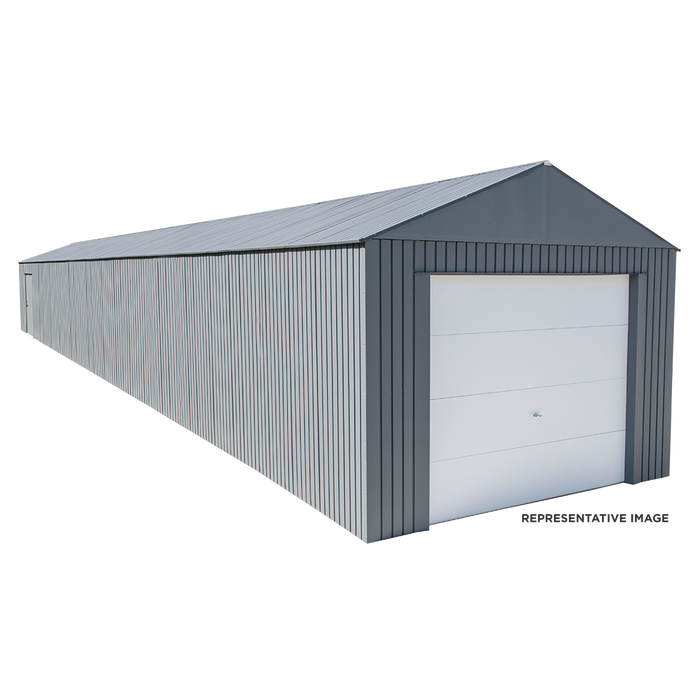

Everest Steel Garage, Wind and Snow Rated Storage Building Kit, 12 ft. x 65 ft. Charcoal

Sojag
Model #: GRC1265

In stock

The Everest Garage Series is a stylish, premium garage from SOJAG. The Everest is made strong and is made with tough Galvalume steel that's aluminum, zinc and silicone plated for exceptional corrosion resistance. The unit features a wind and snow load rating, a stylish premium paint textured finish, and is expandable up to 100 feet long.
shield-check Warranty: 20 Year Limited
flag-usa Manufactured in USA

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

The Everest Garage Series is a stylish, premium garage from SOJAG. The Everest is made strong and is made with tough Galvalume steel that's aluminum, zinc and silicone plated for exceptional corrosion resistance. The unit features a wind and snow load rating, a stylish premium paint textured finish, and is expandable up to 100 feet long.
  • Strong and sturdy: the Everest Garage Series has been developed with Galvalume steel, an aluminum, zinc and silicone-plated steel that offers exceptional corrosion resistance and carries a limited 20-year warranty.
  • Features a premium textured paint for a stylish matte finish that offers added protection to the steel.
  • The Everest Garage Series features a new panel profile design for a stronger steel garage, for up to a 100 MPH wind speed rating.
  • The reinforced, superior strength truss system provides a stronger roof for the unit overall and a 35 PSF ground snow load rating.
  • Sturdy side entry doorway that's 28 in. wide. Features a secure key lock handle.
  • Extra-tall 94 in. high walls, an 8 ft. x 7 ft. sectional garage roll up door and premium brushed metal hardware.
  • Get the size you need, available in multiple lengths in 5 ft. increments
  • Wind and snow loads given are for reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied, fully enclosed building. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser.

Manuals

Assembly Manuals

download Download PDF

Specifications

More Information
General
SKUGRC1265
Specifications
Assembly ManualDownload (PDF)
Size12 x 65 ft.
Side Door / Entrance Width28.3 in.
Details
BrandSOJAG
SeriesEverest
Roof TypePeak
MaterialGalvalume Steel
ColorCharcoal
Door Type1 Sliding Front Roll-Up Door, 1 Side Swing Door
Assembly RequiredYes
Storage BagNo
Included ItemsSteel, Hardware, Garage Door, Manual, Fasteners
Dimensions
Width12 ft.
Length65 ft.
Height10 ft.
Total Storage Area762.74 sq. ft.
Total Storage Volume6864.65 cu. ft.
Assembled Exterior Dimensions Width146.13 in.
Assembled Exterior Dimensions Depth783.6 in.
Assembled Exterior Dimensions Height123.48 in.
Assembled Interior Dimensions Width141.13 in.
Assembled Interior Dimensions Depth778.3 in.
Assembled Interior Dimensions Height122.23 in.
Door / Entrance Width Bottom95 in.
Door / Entrance Height Outside83.66 in.
Side Door Opening Height78.25 in.
Wall Height94 in.
Peak Height28 in.
Warranty/Certifications
Warranty20 Year Limited
Wind Speed Rating100 MPH
Snow Load Rating35 PSF
