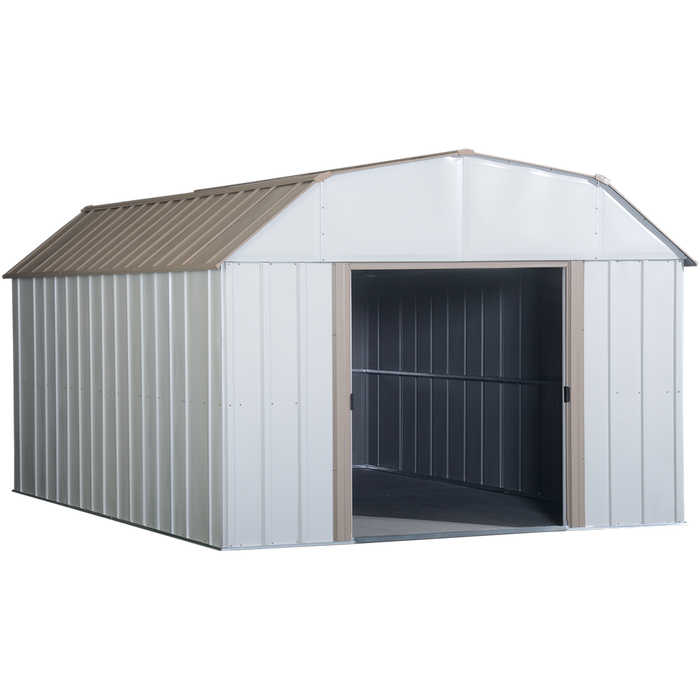

Lexington Steel Storage Shed, 10 ft. x 14 ft. Eggshell

Product Overview

Assembly Manual

Additional Resources

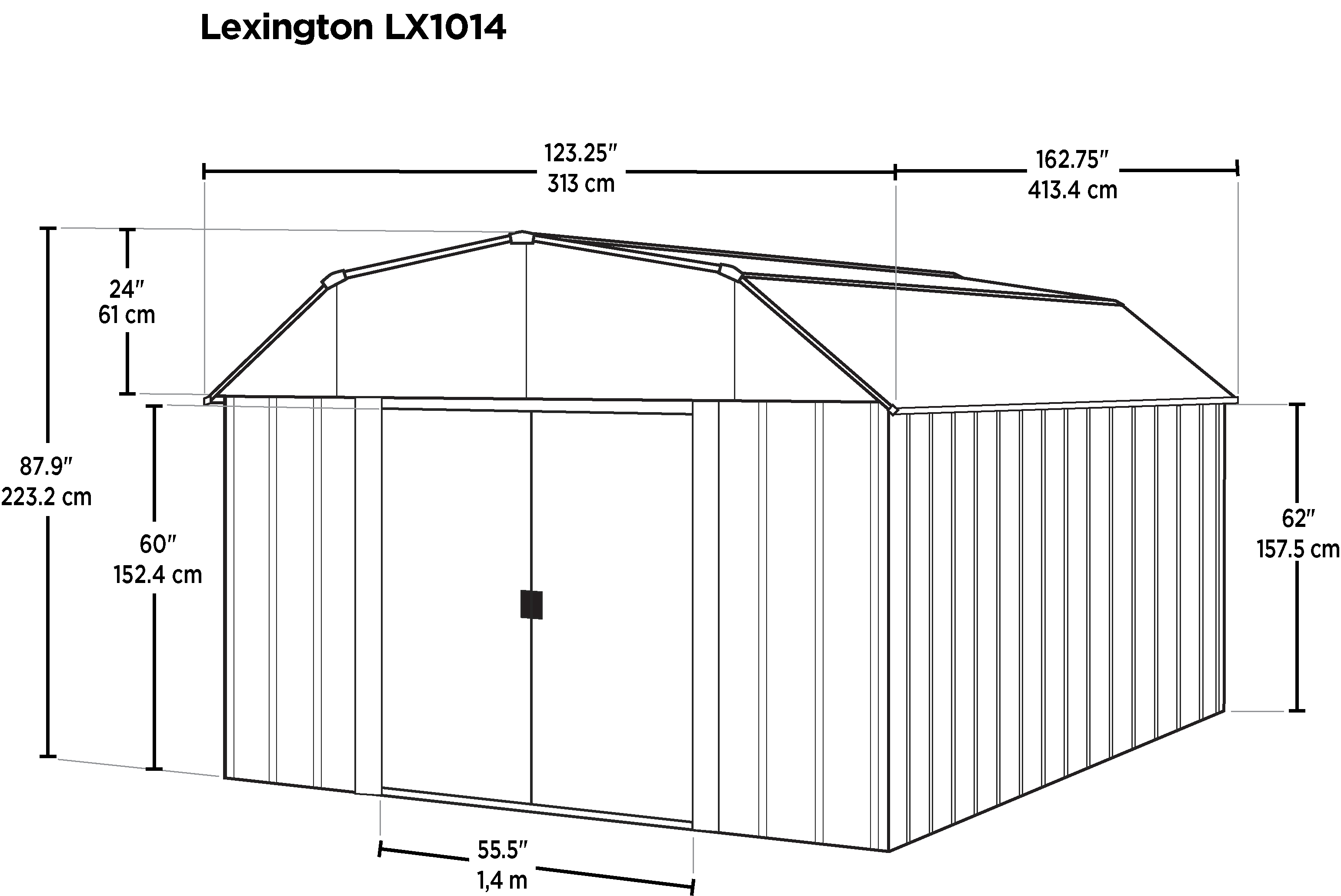

Schematic

The high-gambrel roof style Lexington storage building gives you plenty of storage. Give your garage back to your car and organize lawn and garden equipment, patio furniture and much more in the durable Lexington. Gambrel roof provides an abundance of head room and extra storage space.

Electro Galvanized Steel treated with zinc for strong for corrosion resistance
UV resistant steel panels protect against rot, insects, and extreme weather conditions
High gable steel roof design for additional headroom
Pad-lockable sliding doors for easy entry and exit
Appealing two tone aesthetics in Eggshell & Taupe to complement home exteriors
DIY assembly with pre-cut and pre-drilled parts
12 year limited warranty

Specifications

Specifications
General
SKU	LX1014-C1

Specifications
Assembly Manual	Download (PDF)

Details
Manufacturer	Arrow Storage Products
Series	Lexington
Style	Barn
Material	Galvanized Steel
Color	Eggshell
Door Type	Sliding Doors
Assembly Required	Yes

Dimensions
Width	10 ft.
Length	14 ft.
Height	7.5 ft.
Size	10 x 14 ft.
Total Storage Area	129 sq. ft.
Total Storage Volume	852 cu. ft.
Assembled Exterior Dimensions Width	123.25 in.
Assembled Exterior Dimensions Depth	162.75 in.
Assembled Exterior Dimensions Height	87.88 in.
Assembled Interior Dimensions Width	118.25 in.
Assembled Interior Dimensions Depth	157.5 in.
Assembled Interior Dimensions Height	86.63 in.
Door Opening Width Top	55.5 in.
Door / Entrance Width Bottom	55.5 in.
Door / Entrance Height Outside	60 in.
Wall Height	62 in.
Peak Height	24 in.

Warranty/Certifications
Warranty	12 Year Limited
Proposition 65	No

Prop65 Warning

Warning: Cancer and Reproductive harm

For more information, visit www.P65Warnings.ca.gov

Reviews

Rated 5 out of 5 by Godmother from Awesome Size & Sturdy This building is being utilized in a Municipal Shelter to store food for animals. It is anchored to the concrete and sealed at the base. It is quite spacious, and the doors slide quite easily. It is sturdy and should do great with the winds we get in the area. Our shed does have the heavy duty roofing. The food will now be safe from "uninvited critters." It went up in a day with a crew of 4 volunteers. We love the size and access is easy. I will serve us well for many years to come!

Date published: 2017-02-27

Rated 3 out of 5 by NTD from Disappointing delivery and some tips The delivery was promised by both Arrow and the delivery company to call me before dropping off the shed. I found it lying on the driveway when I got home from a weekend trip. NOT cool. Big problem for getting the 300 lb. box into our garage and out of rain. I have built two homes and do my own remodeling so I am competent in building projects. Still the set up is not easy and requires at least two adults. An awl (tool) is helpful to line up some holes and yes a perfectly level foundation is nice, but even with that every part is not perfectly aligned. The instructions are about 96% clear and complete. Expect to study the directions and follow them, improvise when parts do not match.

Date published: 2021-05-18

Rated 3 out of 5 by SRMC from Lots of labor and patience required! I purchased this shed about a month ago to replace a very similar product that was erected back in in 1974. The shed is same brand but new shed has doors that open to the inside of shelter, the old design doors opened to outside. The shed was 8 x 10 but turns out to be 10' 4" by closer to 7' so not the same footprint but thankfully it still worked. This was a labor intensive family project. We were able to get it finished with approximately 50 man hours total at best estimate. We followed instructions to a T but were a sad this morning to learn it did not keep inside dry after last nights very strong rain storm. I am thinking of getting some clear rubber seal spray to spray the roof as the weather striping didn't do the job along the side seams.

Date published: 2017-09-05

Questions & Answers

My shed is rusting. I bought the 10 x 14 Lexington with the hurricane kit approximately 6 years ago. I had a new concrete slab and professionally installed with a permit. Is this a warranty claim or am I on my own?

Asked by: Bobwat

Hello, We are sorry to hear about this! We would like to gather more information and offer the best solution we possibly can. Please submit a Warranty claim here at: https://www.shelterlogic.com/warranty-claims We can also be reached at 1-800-851-1085 (press 1). Thank you

Answered by: Customer Service Rep

Date published: 2022-06-01

does this include extra hardware?

Asked by: hellcat

Hello, Thank you for your question. The Arrow Shed Model LX-1014 includes all the necessary frame parts and hardware needed to assemble the shed. However, you will need to purchase anchors adequate for your base type. If you have any other questions or wish to discuss this in more detail, please feel free to start a live chat or give us a call at 1-800-932-9344. Thank you

Answered by: Customer Service Rep

Date published: 2022-05-11

Does this come with a floor frame kit or is that separate?

Asked by: JD22

Hello, These sheds do not include a floor because of all the possibilities available. If you are building a solid wooden or concrete platform, that can be used as a floor on its own. If installing your shed on level ground, we do offer a Floor Frame Kit that will provide support for a plywood floor. If you would like to discuss your options further, please feel free to call us at 1-800-851-1085 (press 1). https://www.shelterlogic.com/shop/catalogsearch/result/?q=floor+frame+kit Thank you

Answered by: Customer Service Rep

Date published: 2021-04-15

Is it possible to get a door on both ends? One end for the lawn tractor; the other for bikes.

Asked by: handydadtv

Hello, Unfortunately, this shed is designed to only have one door entrance at the front of the shed. If you would like to discuss this in more detail, please feel free to call us at 1-800-851-1085 (press 1). Thank you

Answered by: Customer Service Rep

Date published: 2021-04-13

Can the door of the lexington be moved to the long side of the 10x14 shed?

Asked by: Jdp

Does the the storage shed come with all the parts to set it up

Answered by: Booq2

Date published: 2022-04-11

Can rivets be used in place of the screws?

Asked by: TakeCover

Hello, Unfortunately, rivets cannot be used to replace the screws needed to assemble this structure. If you would like to discuss this in more detail please give us a call at 1-800-851-1085 (press 1). Thank you

Answered by: Customer Service

Date published: 2018-05-25

Do this company make a shed that is 6×10? And how do the roofs hold up with snow?

Asked by: Jdtech

Hello, Thank you for your question. We do not make a 6x10 Shed however we do in our fabric covered sheds. Below the first link will bring you to all of our steel shed options where you can filter down by size preference and the second link will bring you to our fabric cover 6x10x8 shed in a box. With both options, we recommend removing snow accumulation from the roof to avoid any damage and proper anchoring. If you have any additional questions, please let us know. http://www.shelterlogic.com/shop/arrow-sheds/steel-sheds?length_range=439 http://www.shelterlogic.com/shop/sheds/shed-in-a-box/shed-in-a-boxr-ceb8ec

Answered by: ShelterLogic

Date published: 2017-08-08

Mine was blown down while building it. I need a few new wall panels and a middle channel. Where and how would I be able to purchase parts?

Asked by: Rich74021

Hi Rich, We would be happy to help you with replacement parts. Please give us a call at 1-800-851-1085 (press 1). Thank you

Answered by: ShelterLogic

Date published: 2018-04-24
