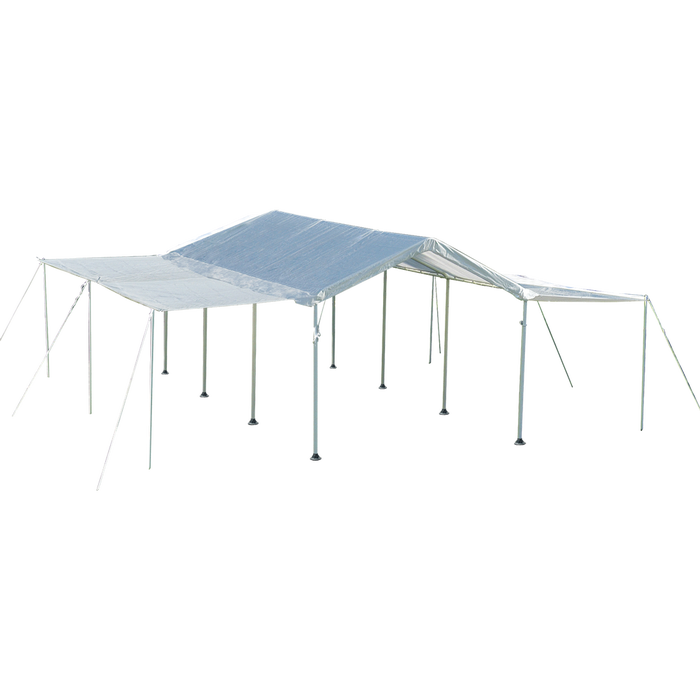

Max AP™ Canopy 2-in-1 with Extension Kit, 10 ft. x 20 ft.

Max AP™ Canopy 2-in-1 with Extension Kit, 10 ft. x 20 ft. is rated 3.8 out of 5 by 5.
  • y_2023, m_3, d_25, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_23530, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 40.93ms
  • REVIEWS, PRODUCT
Model #:
23530
$449.99
Currently Out Of Stock

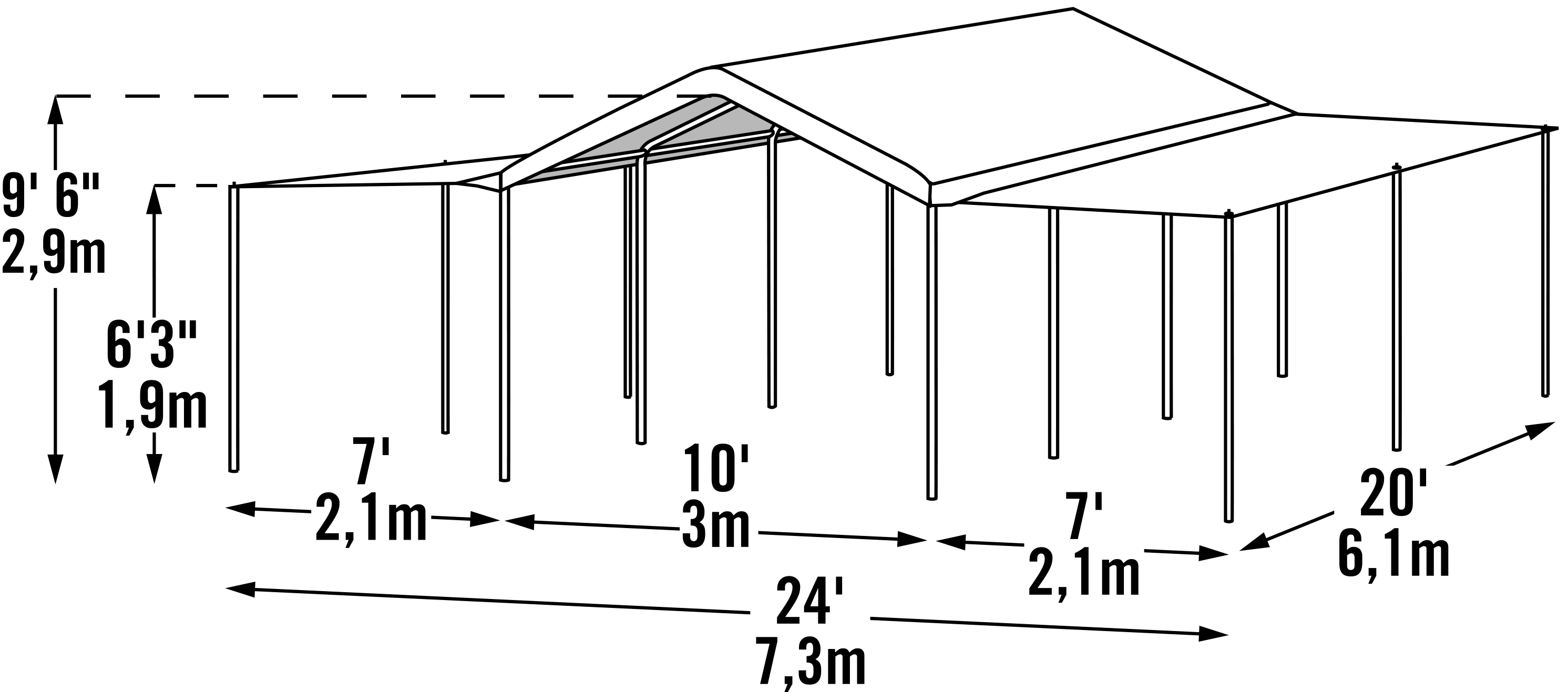

The ShelterLogic Max AP Canopy 2-in-1 with Extension Kit extends shade coverage from an 10 ft x 20 ft canopy to a 24 ft x 20 ft. event tent. Sets up in less than two hours with only two people.
Jump to a section...
Accessories
Product Overview
Specifications
Manuals/Schematics

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

Assembly Manual

Download PDF

Additional Resources

The ShelterLogic Max AP Canopy 2-in-1 with Extension Kit extends shade coverage from an 10 ft x 20 ft canopy to a 24 ft x 20 ft. event tent. Sets up in less than two hours with only two people.
  • Includes complete canopy plus expansion panels and extension poles.
  • Easy-to-install swedged frame is constructed of heavy duty 1-3/8 in. diameter steel
  • Premium powder coat finish protects frame from corrosion and rust
  • Ripstop, UV treated polyethylene fabric cover is 100% waterproof and heat welded, not sewn
  • Patented Twist-Tite tensioning squares up the frame and tightens down cover
  • Cover and expansion panels attach with bungee fasteners
  • Wide foot plates on every leg add stability and easy access to secure anchor points
  • 50+ UPF Sun Protection blocking 98% of harmful UV rays
  • Manufacturer recommends one anchor per leg
Specifications
Specifications
Product Details
SKU23530
Specifications
Assembly ManualDownload (PDF)
Product Overview
ManufacturerShelterLogic
SeriesMax AP
StylePeak
MaterialPolyethylene 5 oz
ColorWhite
Frame ColorWhite
Assembly RequiredYes
Dimensions
Width10 ft.
Length20 ft.
Height9.5 ft.
Size24 x 20 ft.
Rib Tubing Diameter1.34 in.
Assembled Exterior Dimensions Width119.6 in.
Assembled Exterior Dimensions Depth239.8 in.
Assembled Exterior Dimensions Height114.4 in.
Assembled Interior Dimensions Width116.92 in.
Assembled Interior Dimensions Depth237.12 in.
Assembled Interior Dimensions Height113.06 in.
Door / Entrance Width Bottom120.29 in.
Wall Height77.66 in.
Peak Height36.74 in.
Warranty/Certifications
Warranty1 Year Limited
WaterproofYes
Water-ResistantYes
Proposition 65No
Prop65 Warning

Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov

Reviews
Rated 5 out of 5 by from We purchased this 10x20 tent which can expand to 20x20 for our deck. We LOVE it!Provides great sun coverage for big family functions!! Makes me wish we had another deck so we could buy another and have bigger parties!!
Date published: 2018-05-07
Rated 5 out of 5 by from I bought this conopy with extension 8 years ago and buying a replacement now, only used it for parties though.
Date published: 2018-04-07
Rated 5 out of 5 by from GREAT GREAT, I'M GLAD I BOUGHT IT. gO GET YOUR AND YOU WILL LIKE IT
Date published: 2016-05-28
Rated 3 out of 5 by from A lot of money for a side panel with flimsy poles Not what I expected. The picture makes the extension look so nice and taught, I thought there was some type of frame involved. There is not. It is a side panel with some thin legs and lines. It was very droopy. It sagged between the poles. To be fair the final step in the instructions was so vague, I have no idea what it was telling me to do. I asked several people if they could figure it out and they too found it too confusing. I searched for a video but couldn't find one. Perhaps that's the step that prevents the sagging, but as I can not figure it out, I will never know.
Date published: 2022-07-07
Rated 1 out of 5 by from one wind leg broke completely in half At first thought it was awesome. One use and 1 gust of wind a leg broke completely in half, and one of the leg that connects to the top got mangled in the cross hole that it won't come out and not it is not setting the way it needs to be to be usable. $300+ cost of it should get more than one use. And of course they say it is not covered under warranty. had to buy more parts for it and shipping add another $50 to the cost.
Date published: 2017-08-07
  • y_2023, m_3, d_25, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_23530, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 2.48ms
  • REVIEWS, PRODUCT
Questions & Answers

You used to have this same product with thicker poles. I used it for years until we got some wind that twisted it, ruined the frame. I would buy another one but 1 3/8" is not going to cut it. Can I still get one like that? It also had a screen.

Asked by: rockinon
Hello, We do still offer the canopy with a 2" frame (SuperMax Canopy). However, we do not offer it as a 2-in-1 with the extension kit. You are able to purchase the SuperMax canopy with the extension kit or screen kit separately. If you would like to discuss in more detail please feel free to start a live chat or give us a call at 1-800-932-9344. Thank you
Answered by: Customer Service
Date published: 2020-05-06

Is the canopy material compliant with NFPA 701? Is the material flame and heat resistant?

Asked by: Fire Marshal
Hello, Unfortunately, this material is not NFPA-701 compliant. However, the covers on our Party Tents do meet the resistance requirements of NFPA-701 and CPAI-84. If you have any additional questions or concerns please feel free to call us at 1-800-932-9344. https://www.shelterlogic.com/shop/department/outdoor-shades/party-tents Thank you
Answered by: Customer Service
Date published: 2019-08-20

Can this be used with Mode l# 25707, Max AP Canopy?

Asked by: acweb
Hello, Yes you can but the kit would be in white only. Thank you
Answered by: DaniL
Date published: 2018-10-23

Hi, what's the best way to order parts for this model - in particular, part #13101 and 10075?

Asked by: JackN
Hello Jack, To order parts you just call in to 1-800-932-9344 with your part numbers ready. Just so you now part # 10075 has been changed to part # 800195 (base foot). Thank you
Answered by: Customer Service
Date published: 2017-12-12

Hi I was wondering what this kit and poles are rated at for wind? Planning on taking it out to burnin man where desert winds whip up really high at times. Will I need extra reinforcement for the poles or is this product not designed for a very windy place

Asked by: BurnerRyan
Hello, Proper anchoring of your canopy is critical for wind resistance. We recommend anchoring every foot down with a 30" anchor. Since this is considered a temporary canopy if high winds are expected we recommend removing and storing the cover. Thank you
Answered by: ShelterLogic
Date published: 2017-08-08

Hi Thanks for answering a question.. But I was looking for the replacement for the 20 x 24 cover...not the 10 x 20. thanks!

Asked by: Grace
Hi Grace, Unfortunately we do not have a 20wide x 24long canopy. If you have an existing shelterlogic canopy, please check the inside of your cover for a white tag that will have a reorder part number on it. Please give us a call at 1800-932-9344 and we can check into this further for you. Thank you
Answered by: ShelterLogic
Date published: 2017-08-08

Hello. Can you only add one side of the extension kit to the included canopy or must both sides be added for it to be stable.

Asked by: Goyaluv
Hello, Yes you can leave one side up and one side down on the extension kit if that works best for you. Thank you
Answered by: ShelterLogic
Date published: 2017-08-02

What is the replacement part number for the canopy only? ...not the sides.

Asked by: Grace
Hi Grace, The replacement top cover number for our 10x20 Max AP canopy is 10072. If you have any additional questions, please let us know. Thank you
Answered by: ShelterLogic
Date published: 2017-08-06
