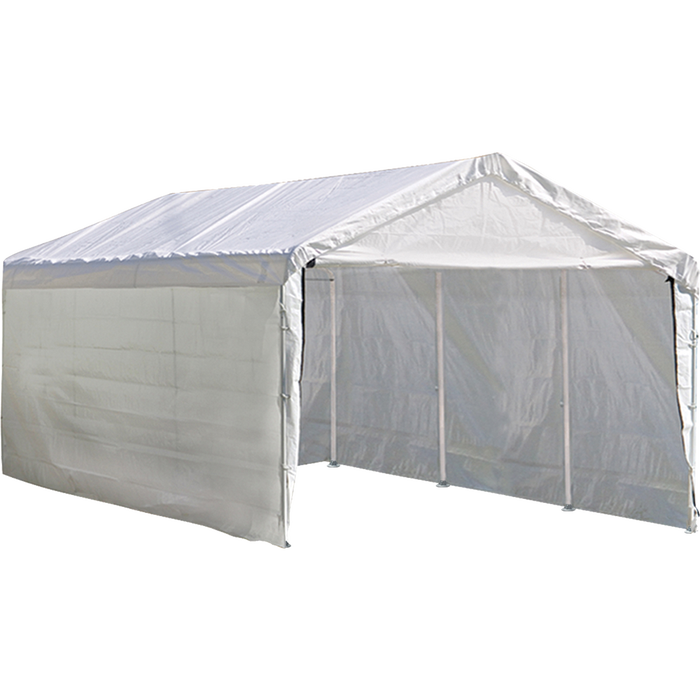

Max AP™ Canopy 3-in-1 with Enclosure Kit, 10 ft. x 20 ft.

Max AP™ Canopy 3-in-1 with Enclosure Kit, 10 ft. x 20 ft. is rated 3.5 out of 5 by 27.
  • y_2023, m_3, d_21, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_6, tr_21
  • loc_en_US, sid_23532, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 25.51ms
  • REVIEWS, PRODUCT
Model #:
23532
$559.99
In stock

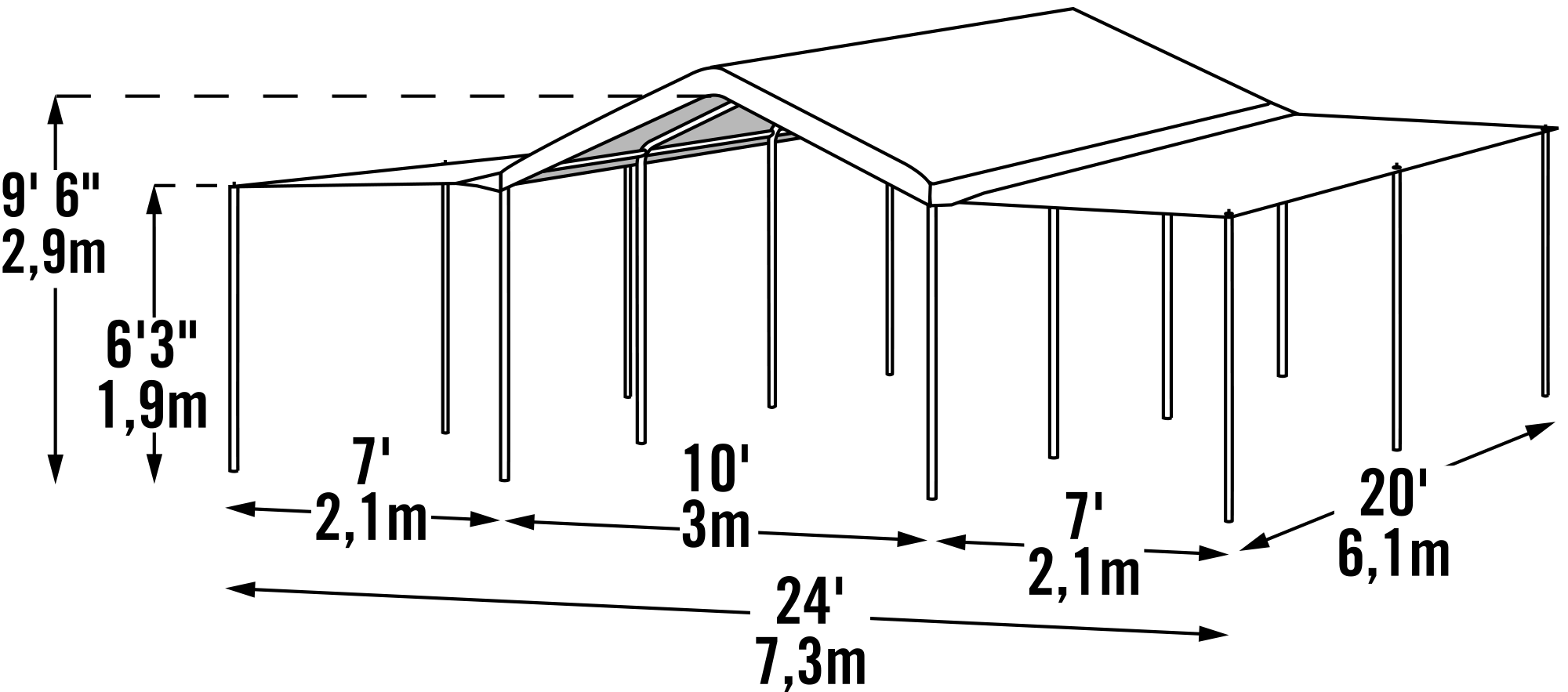

The ShelterLogic Max AP 3-in-1 Canopy Pack is great for any seasonal shade occasion including backyard, events, camping, commercial job sites, picnic areas, and much more. Extension Kit extends shade coverage from an 10 ft x 20 ft canopy to a 24 ft x 20 ft. event tent. Sets up in less than two hours with only two people.
Jump to a section...
Accessories
Product Overview
Specifications
Manuals/Schematics

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

Assembly Manual

Download PDF

Additional Resources

The ShelterLogic Max AP 3-in-1 Canopy Pack is great for any seasonal shade occasion including backyard, events, camping, commercial job sites, picnic areas, and much more. Extension Kit extends shade coverage from an 10 ft x 20 ft canopy to a 24 ft x 20 ft. event tent. Sets up in less than two hours with only two people.
  • Includes complete canopy plus enclosure, expansion panels and extension poles.
  • Easy-to-install swedged frame is constructed of heavy duty 1-3/8 in. diameter steel
  • Premium powder coat finish protects frame from corrosion and rust
  • Ripstop, UV treated polyethylene fabric cover is 100% waterproof and heat welded, not sewn
  • Patented Twist-Tite tensioning squares up the frame and tightens down cover
  • Cover, enclosure walls and expansion panels attach with bungee fasteners
  • Wide foot plates on every leg add stability and easy access to secure anchor points
  • 50+ UPF Sun Protection blocking 98% of harmful UV rays
  • Manufacturer recommends one anchor per leg
Specifications
Specifications
Product Details
SKU23532
Specifications
Assembly ManualDownload (PDF)
Product Overview
ManufacturerShelterLogic
SeriesMax AP
StylePeak
MaterialPolyethylene 5 oz
ColorWhite
Frame ColorWhite
Assembly RequiredYes
Hardware KitYes
Dimensions
Width10 ft.
Length20 ft.
Height9.5 ft.
Size10 x 20 ft.
Rib Tubing Diameter1.34 in.
Assembled Exterior Dimensions Width119.6 in.
Assembled Exterior Dimensions Depth239.8 in.
Assembled Exterior Dimensions Height114.4 in.
Assembled Interior Dimensions Width116.92 in.
Assembled Interior Dimensions Depth237.12 in.
Assembled Interior Dimensions Height113.06 in.
Door / Entrance Width Bottom102.6 in.
Wall Height77.66 in.
Peak Height36.74 in.
Warranty/Certifications
Warranty1 Year Limited
WaterproofYes
Water-ResistantYes
Proposition 65No
Prop65 Warning

Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov

Reviews
Rated 5 out of 5 by from First quality on re-order parts and fast shipping. The two orders of the Shelter Logic I ordered were a perfect fit. Plus, they were shipped fast and my husband and I are very well satisfied. Thank you for your professionalism in all aspects of these transactions. Have a blessed Christmas to you and your family and keep up the good work you do every day of the year. Best Regards, Nancy and Jeffrey P. Wilbur
Date published: 2022-12-02
Rated 5 out of 5 by from Exactly as described!! I am extremely pleased with the quality and performance of my new screen. I have had the 10x20 canopy for a few years and just bought the screen kit for it. It was worth every penny!!!
Date published: 2019-07-24
Rated 5 out of 5 by from 6 yrs going strong I have had this product 6+yrs and use it for camping, backyard functions, work on cars under. Love it
Date published: 2019-03-04
Rated 5 out of 5 by from love these This is not the first time I have used this product. I have several and they are the best.
Date published: 2019-01-13
Rated 5 out of 5 by from Just perfect for my daughter's '68 Mustang. I have had a Shelter Logic canopy for about 10 years for my fire engine and when I needed one for my daughter's '68 Mustang I never considered anything but a Shelter Logic. I like that they are sturdy the fact that you can get replacement tops.
Date published: 2018-10-18
Rated 5 out of 5 by from Camping canopy We have been using this canopy for our family camping trip for three years. We have the screen enclosure and extenders on each side. With the right stakes as recommended in the instructions (my favorite are the heavy duty stakes from Shelterlogic I bought on clearance one year), we have been in plenty of windy thunderstorms without difficulties. I recommend this canopy. It is not quickly set up, but the resulting sturdiness is worth it. I have set it up alone, but prefer to do it with one or two other people which takes about 20 minutes.
Date published: 2018-08-12
Rated 5 out of 5 by from ShelterLogic-Canopy 3-in-1 Screen Kit November 8, 2016 OUTSIDE THE BOX SET IT UP FOR $249.99 WHAT A EXCELLENT WORKERS The ShelterLogic-Canopy light brown looks so strong and great looking material. Our neighbors may buy one also that how good it looks. We purchased it from Canadian Tire store at Least, Hull Québec for $599.99 regular $799.99. Sorry no picture available model #23532 24'x20'x12'
Date published: 2016-11-16
Rated 5 out of 5 by from Perfect fit My son-in-law had purchased the top and poles and never used it..my husband put it together and we decided to find the enclosure kit to protect our newly painted truck.. I found shelterlogic on line..they were helpful and courteous and prompt delivery..it's perfect!
Date published: 2016-10-12
  • y_2023, m_3, d_21, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_6, tr_21
  • loc_en_US, sid_23532, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_shelterlogic
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 2.42ms
  • REVIEWS, PRODUCT
Questions & Answers

Can u add on to an Existing 10-20 tent ( portable garage ?)

Asked by: Tracy68
Hello Tracy, The Model #25775 Enclosure-Kit 10X20, White 1-3/8" is only compatible with our Max AP™ Canopy - 8 Legs, 10 ft. x 20 ft. model #23539. To further assist you, we will need to gather more information to properly find the right shelter that meet your needs. Please feel free to give us a call at 1-800-932-9344. Thank you
Answered by: Customer Service Rep
Date published: 2022-08-31

Need to purchase 10x20 maxap metal frame only.  Can you forward info please. Best!

Asked by: Chris ann
Hello Chris, For replacement parts, please contact us at 1-800-932-9344. Thank you
Answered by: Customer Service Rep
Date published: 2022-06-01

Can you close the front? With the White Cover Enclosure and Extension Kits, can I close the where the car would pull it to close off all sides?

Asked by: BrettS14
Hi Brett, Yes, the Enclosure Kit will allow you to close the front panel.
Answered by: Customer Service
Date published: 2020-12-02

hi i was trying to find some where to purchase some elbo to put my tent back together after the storm need 3 parts item # 1047 four way connector for top part of frame model #23573 or can i back order them here

Asked by: larro
Hi Larro, To order parts please give us a call at 1-800-932-9344.
Answered by: Customer Service
Date published: 2020-12-02

2 of my 3 way frame connectors, part # 13101, are broken, and one of my Cross Poles 39.5", part # 13107 is also broken. I was wondering if it is possible to get these replace so that I can put my tent back up. thanks for your help in regards.

Asked by: jeanjean
Hi Jean, Yes, we do offer these replacement parts. For pricing and availability please give us a call at 1-800-932-9344.
Answered by: Customer Service
Date published: 2020-10-21

Any suggestions on getting the poles apart after use? We cannot get them apart to store until next use

Asked by: Allison 203
Hi Allison, We recommend trying to twist the poles to pull them apart. If you are still experiencing difficulties please feel free to give us a call at 1-800-932-9344.
Answered by: Customer Service
Date published: 2020-10-01

Help! We can't figure out how to secure the roof to the frame. The picture in the instructions is not helpful. There are no written instructions for that procedure either. I need a really good hint.

Asked by: DJG
Hello, We can certainly assist with that! The length of the cover will be secured via bungee cord and the corners will be knotted and wrapped around the corner legs. Below we have also included a link to our How-To video. If you still have any additional questions please feel free to start a live chat or give us a call at 1-800-560-8383. https://www.youtube.com/watch?time_continue=1&v=a5sJWCQdR2Q&feature=emb_logo Thank you
Answered by: Customer Service
Date published: 2020-03-30

Can a replacement cover be purchased for this set?

Asked by: qst4it
Hello, Yes, you will require Part# 10072. For pricing and availability feel free to start a live chat or give us a call at 1-800-932-9344. Thank you
Answered by: Customer Service
Date published: 2020-02-11
