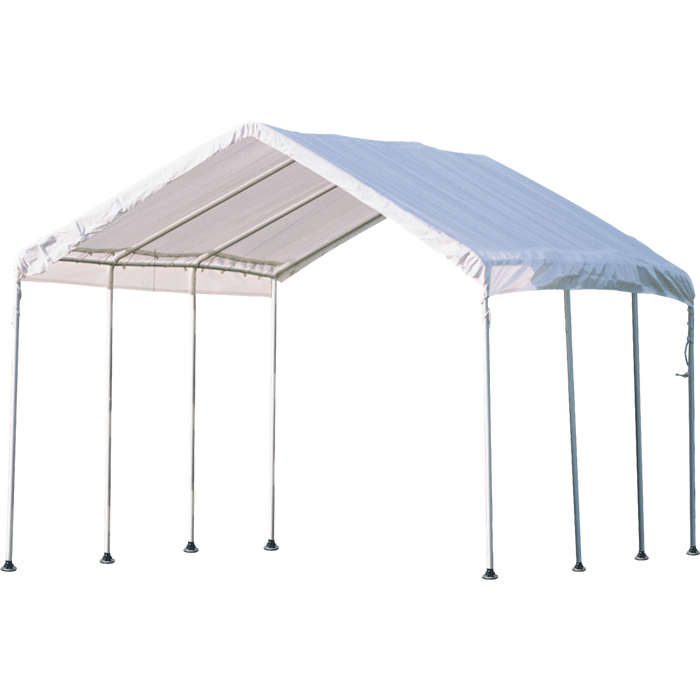

Max AP™ Canopy - 8 Legs, 10 ft. x 20 ft.

Product Overview

Assembly Manual

Additional Resources

Schematic

The ShelterLogic Max AP Canopy is the ideal seasonal shade solution for decks, patios or backyards. Sets up in less than two hours with only two people. Great for camping, picnic areas, backyard events, pool areas, commercial job sites, and much more.

Frame constructed of heavy duty 1-3/8 in. diameter steel
Premium powder coat finish protects frame from corrosion and rust
Easy to install, fitted swedged pipes
Ripstop, UV treated polyethylene fabric cover is 100% waterproof and heat welded, not sewn
Patented Twist-Tite tensioning squares up the frame and tightens down cover
Cover attaches with bungee fasteners
Wide foot plates on every leg add stability and easy access to secure anchor points
50+ UPF Sun Protection blocking 98% of harmful UV rays
Manufacturer recommends one anchor per leg

Specifications

Specifications
General
SKU	23539

Specifications
Assembly Manual	Download (PDF)

Details
Manufacturer	ShelterLogic
Series	Max AP
Style	Peak
Material	Polyethylene 5 oz
Color	White
Frame Color	White
Assembly Required	Yes
Hardware Kit	Yes

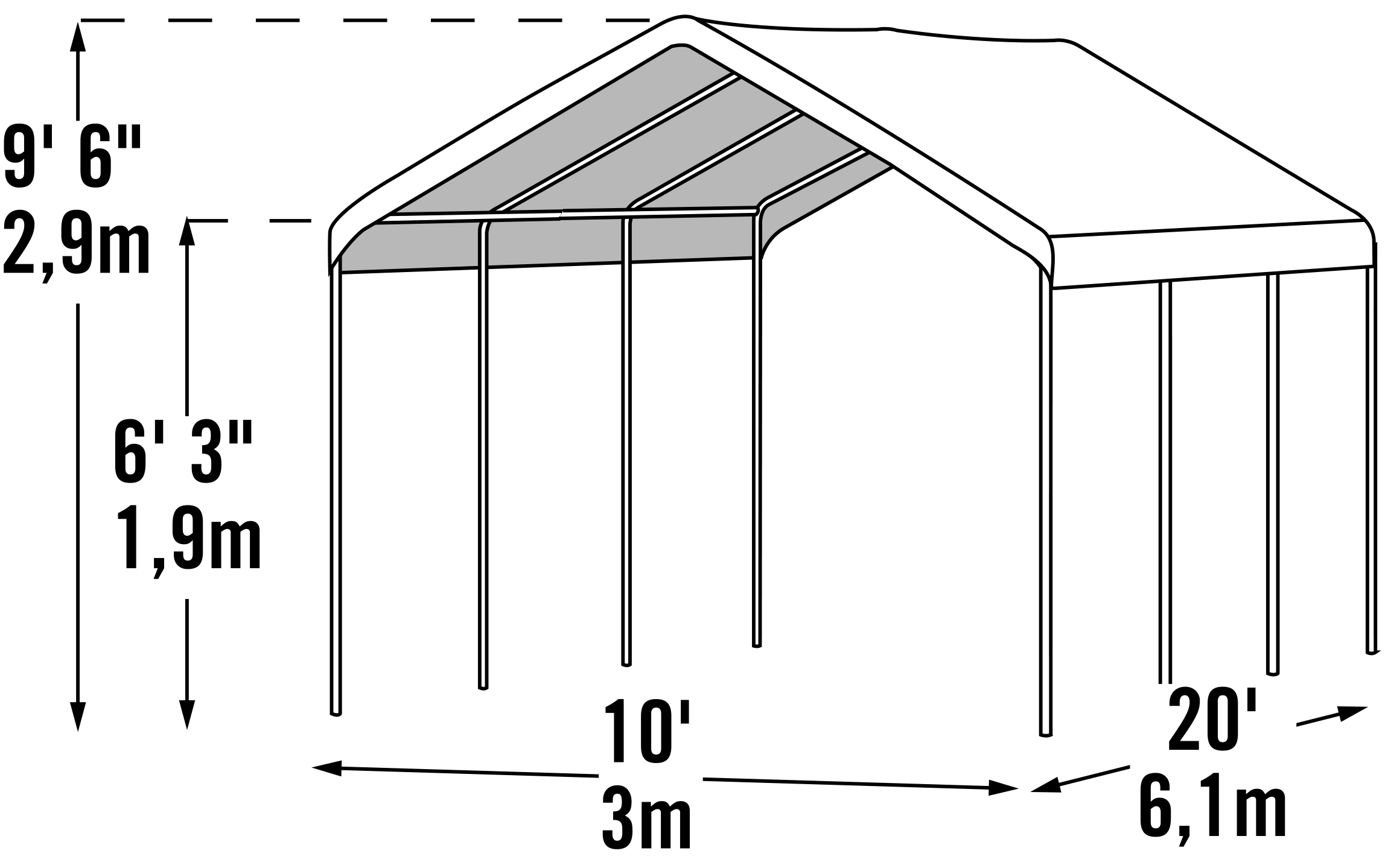

Dimensions
Width	10 ft.
Length	20 ft.
Height	9.5 ft.
Size	10 x 20 ft.
Rib Tubing Diameter	1.34 in.
Assembled Exterior Dimensions Width	119.6 in.
Assembled Exterior Dimensions Depth	239.8 in.
Assembled Exterior Dimensions Height	114.4 in.
Assembled Interior Dimensions Width	116.92 in.
Assembled Interior Dimensions Depth	237.12 in.
Assembled Interior Dimensions Height	113.06 in.
Door / Entrance Width Bottom	57 in.
Wall Height	77.66 in.
Peak Height	36.74 in.
Warranty/Certifications
Warranty	1 Year Limited
Waterproof	Yes
Water-Resistant	Yes
Proposition 65	No

Related Posts

Prop65 Warning

Warning: Cancer and Reproductive harm

For more information, visit www.P65Warnings.ca.gov

Reviews

Rated 5 out of 5 by Anonymous from Canopy Great experience. Deborah was wonderful and knowledgeable.

Date published: 2019-10-14

Rated 5 out of 5 by jeffrycowan from Even better than I thought! This is my third ShelterLogic 10x10 Canopy. I find the canopy drains properly if you keep the side overhangs pulled down as far as possible and release any captured water after a rainstorm the same way. The instructions are clear. The ball bunjees into gromments work very well. My only problem is that with the third canopy, only 2 instead of 4 gray rubber ground pads for the supporting poles were sent. Bummer! Not sure how to get replacements. Still I give a "5" rating because I have setup numerous tents and canopies and this seems the sturdiest with carefully manufactured parts. I agree with others who have said to assemble the top first, then put on the top part of the legs, then the bottom of the legs. One person can do this. I will return to ShelterLogic!

Date published: 2019-07-29

Rated 5 out of 5 by Mikeh from A good solid unit I already had one and RV next to me saw how well it stood up to weather and had me order one for her. I would love to have this in a 12 x 12.

Date published: 2019-06-16

Rated 5 out of 5 by DougT from Just what I need!! I bought my first canopy from Shelter Logic about 5 years ago. I replaced the cover on that one at just over 3 years, Redding sunlight is tough! This winter we had a rare 10 inch snowfall---it didn't make it. So, this is a replacement and I wouldn't go anywhere else.

Date published: 2019-05-27

Rated 5 out of 5 by 5Willie from This max canope works so much better than the pop up ones that keep getting broken ribs with the wind especially at the base of Lake George.Ease of setuo and breakdown If you plan on keeping it up you need to put screws in the junctions

Date published: 2018-06-18

Rated 5 out of 5 by Sanlee from Canopy 8 legs I bought this about 3 weeks ago. It has been set up over a wooden deck. The shade has made family picnics a great hit. We love it would beat an awning any day very sturdy. Held up even in the storms we have recently had with 50- 60 mph winds with heavy rains. Highly recommended.

Date published: 2018-05-28

Rated 5 out of 5 by Zeeker from Love my canopy My neighbors removed all their trees and my driveway was left in full sun, making that area unbearable most of the day. The 10x20 ShelterLogic Canopy dropped into the space perfectly. Now I have a very pleasant outdoor room for my plants, garden projects, bikes, and patio furniture. I love the canopy! Thank you.

Date published: 2018-05-28

Rated 5 out of 5 by Rich154 from Wonderful Shelter This is my second canopy. The first provided shade for my patio. This one, for my deck. Both were easy to assemble, and are much more substantial than the normal pop up canopies. Also has the added advantage of being able to purchase replacement canvas. I did pop rivet the joints for added stability.

Date published: 2018-05-24

Max AP™ Canopy - 8 Legs, 10 ft. x 20 ft. Reviews - page 2

Questions & Answers

Hello, I purchased a replacement cover for the 10 x 10 MAX AP I have about 6 months ago. It took approximately a year for it to get into stock (COVID times). Any chance of there being any in stock at this time that I may purchase ?

Asked by: Russ12

Hello Russ, Thank you for your question. Yes, the replacement Canopy top #10372 for the 10 x 10 MAX AP Canopy Model #: 23521 is indeed available for purchase. To place an order, please feel free to start a live chat or give us a call at 1-800-932-9344. Thank you

Answered by: Customer Service Rep

Date published: 2022-05-09

can you get side walls for the 10' x 10'

Asked by: bach

Hello, Unfortunately, there are no side-walls accessories available for the 10X10 AP Canopy. If you have any other questions or would like to discuss this in more detail, please feel free to contact us at 1-800-932-9344. Thank you

Answered by: Customer Service Rep

Date published: 2021-09-16

Are the 10 x 10 Max AP replacement covers in stock yet ?

Asked by: Russ12

Hello Russ, Thank you for your inquiry. The item is still out of stock at the moment. For replenishment details, please call in at 1-800-932-9344. Thank you

Answered by: Customer Service Rep

Date published: 2021-09-07

I have a Shelterlogic 10 x 10 Max AP and would like to purchase a replacement top #10375. Is that possible?

Asked by: Russ12

Hello Russ, The replacement Canopy top number is actually #10372, but the item is currently out of stock at the moment. For replenishment details, please call in at 1-800-932-9344. Thank you

Answered by: Customer Service Rep

Date published: 2021-06-02

A big gust of winds broke 2 legs in half and bent the outer 2 in half. How much is the frame only for the 10x20 frame and ca ou purchase just legs?

Asked by: Anonymous

Hi Wendy, Yes, we do offer replacement parts. In general for leg poles they can be purchased fro $10/each + shipping. For specific pricing and availability please give us a call at 1-800-932-9344. Thank you

Answered by: Customer Service

Date published: 2020-07-15

A big gust of winds broke 2 legs in half and bent the outer 2 in half. How much is the frame only for the 10x20 frame and ca ou purchase just legs?

Asked by: Wendy Arnold

Hi Wendy, Yes, we do offer replacement parts. In general for leg poles they can be purchased fro $10/each + shipping. For pricing and availability please give us a call at 1-800-932-9344. Thank you

Answered by: Customer Service

Date published: 2020-07-15

Only came with 3 bases for the poles, where can i get 3 more.

Asked by: rm78

Hello, We are very sorry to hear about this! Please give us a call at 1-800-932-9344.

Answered by: Customer Service

Date published: 2020-05-11

i cant find a replacment canopy for the max ap 6 legs 10ft x 20ft and on mine the replacment number has vanished?

Asked by: antoino13

Hi, You require Part #10072. For pricing and availability feel free to visit the link below, start a live chat or give us a call at 1-800-932-9344. https://www.shelterlogic.com/products/replacement-cover-kits/ Hope that helps!

Answered by: Customer Service

Date published: 2020-08-10
