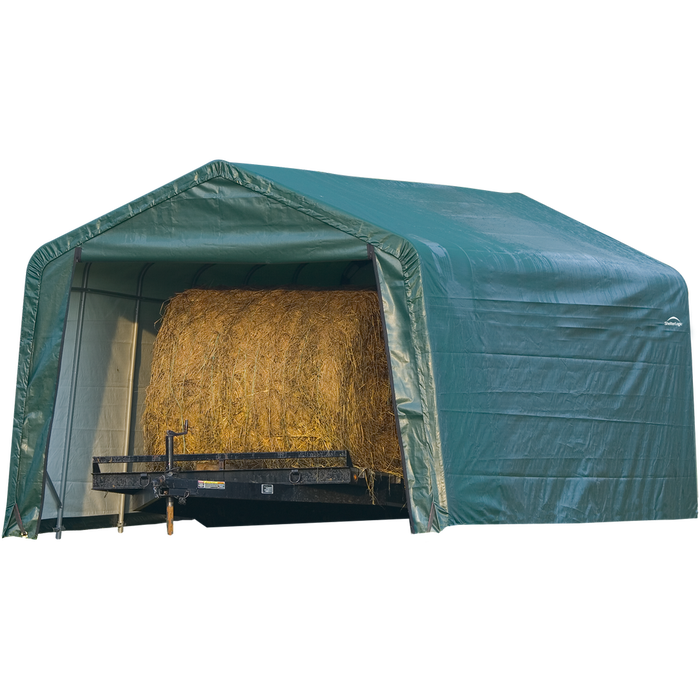

Storage Shelter, 12 ft. x 20 ft. x 8 ft.
Storage Shelter, 12 ft. x 20 ft. x 8 ft. is rated
out of
5 by
5.
Model #:
71534
$874.99
In stock
Looking for the perfect bulk storage solution or equine shelter. Our 12 x 20 x 8 ft. AG Series Storage Shelter fits the bill. Constructed of high grade 1 5/8 in. steel frame. Every frame tube and connector goes through a proprietary 13 step steel surface prep process for maximum durability. Premium powder coat is baked for an even finish that will not chip, peel, rust or corrode. Advanced engineered ripstop tough woven polyethylene fabric is triple layered, heat bonded for ultimate 4 season performance. Hot air fused seams are 100% waterproof, UV treated inside, outside and in between with added fade blockers, anti aging and anti fungal agents. High profile white interior provides enhanced illumination. Easy to set up and take down as needed with slip fit connectors and best in class swedged tubing. Double Zippered door panels allow easy access from both ends and deliver drive through options. Heavy duty corner braces and rugged Ratchet Tite tensioning enables quick cover installation. Easy Slide Cross Rail system locks down and squares up frames for initial and continuous frame to fabric fit. Structure requires no building permits in most cases. Check local ordinances before installation. Comes ready to install. Great for horses, hay, bulk storage, equipment and much more.
Jump to a section...
Accessories
Product Overview
Specifications
Manuals/Schematics
Do you have questions about this product? Our Customer Service team is here to help!
Accessories
Check items to add to the cart or
Product Overview
Assembly Manual
Additional Resources
Looking for the perfect bulk storage solution or equine shelter. Our 12 x 20 x 8 ft. AG Series Storage Shelter fits the bill. Constructed of high grade 1 5/8 in. steel frame. Every frame tube and connector goes through a proprietary 13 step steel surface prep process for maximum durability. Premium powder coat is baked for an even finish that will not chip, peel, rust or corrode. Advanced engineered ripstop tough woven polyethylene fabric is triple layered, heat bonded for ultimate 4 season performance. Hot air fused seams are 100% waterproof, UV treated inside, outside and in between with added fade blockers, anti aging and anti fungal agents. High profile white interior provides enhanced illumination. Easy to set up and take down as needed with slip fit connectors and best in class swedged tubing. Double Zippered door panels allow easy access from both ends and deliver drive through options. Heavy duty corner braces and rugged Ratchet Tite tensioning enables quick cover installation. Easy Slide Cross Rail system locks down and squares up frames for initial and continuous frame to fabric fit. Structure requires no building permits in most cases. Check local ordinances before installation. Comes ready to install. Great for horses, hay, bulk storage, equipment and much more.
- All-steel frame with thermoset baked on powder-coated finish resists rust and corrosion
- Advanced engineered, triple layer, chemically heat bonded, enhanced polyethylene, ripstop fabric cover is 100% waterproof, UV-treated inside and out with added fade blockers, anti-aging and antifungal agents.
- High profile white interior lining provides enhanced illumination
- Structure sets up quickly and in most cases requires no building permits
Specifications
| Product Details | |
|---|---|
| SKU | 71534 |
| Specifications | |
| Assembly Manual | Download (PDF) |
| Product Overview | |
| Manufacturer | ShelterLogic |
| Series | Storage Shelter |
| Style | Peak |
| Material | Standard Polyethylene 9 oz |
| Color | Green |
| Frame Color | Gray |
| Door Type | 2 Double Zippered Doors, Front and Rear |
| Assembly Required | Yes |
| Hardware Kit | Yes |
| Dimensions | |
| Width | 12 ft. |
| Length | 20 ft. |
| Height | 8 ft. |
| Size | 12 x 20 x 8 ft. |
| Total Storage Area | 241.98 sq. ft. |
| Total Storage Volume | 1607.24 cu. ft. |
| Rib Tubing Diameter | 1.65 in. |
| Assembled Exterior Dimensions Width | 145.76 in. |
| Assembled Exterior Dimensions Depth | 239.06 in. |
| Assembled Exterior Dimensions Height | 100.38 in. |
| Assembled Interior Dimensions Width | 142.46 in. |
| Assembled Interior Dimensions Depth | 235.76 in. |
| Assembled Interior Dimensions Height | 98.73 in. |
| Door Opening Width Top | 102 in. |
| Door / Entrance Width Bottom | 94 in. |
| Door / Entrance Height Outside | 75 in. |
| Wall Height | 69.74 in. |
| Peak Height | 30.64 in. |
| Warranty/Certifications | |
| Warranty | 1 Year Limited |
| Waterproof | Yes |
| Water-Resistant | Yes |
| Proposition 65 | No |
Prop65 Warning
Warning: Cancer and Reproductive harm
For more information, visit www.P65Warnings.ca.gov
Reviews
Rated 5 out of
5
by
Llama mama from
Perfect shelter for llamas & alpacas
We erected this shelter a month ago; construction was easily manageable. It is for protection of our animals from the elements. Working out nicely!
Date published: 2017-11-02
Rated 4 out of
5
by
Tomf from
Burrs and dents made it harder to assemble
The spars should take less than 10 minutes to assemble. However, burrs, dents, and flares on the ends of pipes took a lot of time to work through. Many of the pieces had to be beat together with a piece of wood. Some burrs from drilling holes were over 1/16 inch which is enough to turn a 30 second slip together assembly into a 3 minute pound together assembly all while trying to keep the assembled part from getting scratched on the gravel driveway. Some holes needed grinding smooth (a 10 minute walk from the assembly area to the garage). A little fit and finish on ShelterLogic's side (or a note in the instructions to tell us it's our problem) would reduce some frustration.
Date published: 2019-09-19
Rated 3 out of
5
by
Hlkwaz from
Harder than it looks
Instructions are vague, lacking important details which would speed things along. Took a lot longer than it should or than indicated in directions. Been up a month and seems sturdy enough see how it fairs in CNY winter. Not noted in description but no way to keep the doors up or open.
Date published: 2018-09-29
Rated 1 out of
5
by
kloader from
Shredded to pieces
Last winter the shelter was fine. This winter 2021/2022 we had a really bad winter wind in Northern Ontario and there is nothing left. Now I read that the cheapest cover is included. I will see if I can fit a regular tarp because i'm not spending $900 for a replacement cover. I see Canadian Tires' same shelter has a shredded door already, and the put it up this fall.
Date published: 2022-02-12
Rated 1 out of
5
by
JBC from
Canvas don’t last
On my THIRD canvas covering in the last 5 years.
Date published: 2020-09-06
Questions & Answers
For Square bale hay storage do you have to crib it in, or is the steel frame strong enough on its own? Also, for semi long term (around 1-2 months) does condensation become an issue?
In case anyone’s still wondering, yes, condensation is a problem. Get the vents if you’re going to keep hay in it. Leave a little gap between the sides and your hay so you’re not pushing on the fabric. Be prepared to replace the fabric within a year.
Date published: 2021-07-31
how many regular two string bales can fit in this storage shelter?
Hi Catherine,
This would depend on the exact size of the bales and how much room you would like to have to move around in.
Date published: 2021-07-31
Can you order replacement frame pieces for 12x20x8 shelter
Hello,
Yes, we do offer replacement parts. For pricing and availability please give us a call at 1-800-932-9344.
Date published: 2022-08-27
How many square bales will this hold?
Hello,
This will depend on the size of your bales of hay. To discuss in more details please give us a call at 1-800-932-9344.
Thank you
Date published: 2021-07-31
Does this building have a wind rating? Which buildings have wind ratings?
Hello, This product does not have a wind or snow load rating. Our shelters that do come with a wind and snow load rating are the Sheltertube line and the SP series shelters. If you would like to discuss the best option for you, please call us at 1800-932-9344. Thank you
Date published: 2021-03-20
How much is a replacement cover for the 12x20x8 zipper closure on the ends?
Hello, We have a few different options available for replacement covers for this size Shelter. Can you please give us a call at 1800-932-9344? Thank you
Date published: 2021-03-20
What is the "9 oz standard" cover made of? Is it polyethylene, like on the Garage in a Box series, what has a 7.5 oz polyethylene cover?
Yes, this cover is made of 9oz polyethylene. If you are interested in learning more about our heavier options, please give us a call at 1800-932-9344 and a Shelter expert will be happy to go over all of the different options.
Date published: 2016-06-16
