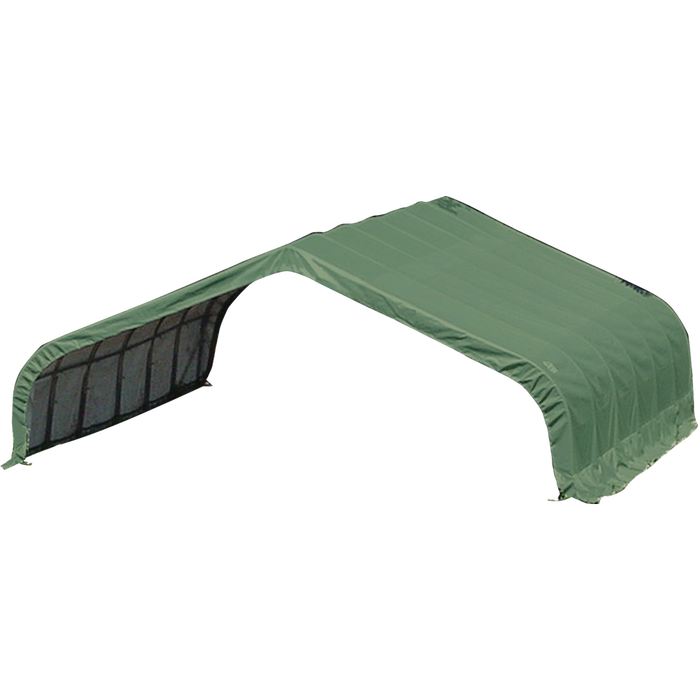

Run-In Shelter Peak, 22 ft. x 24 ft. x 13 ft.

ShelterLogic
Model #: 58542

In stock

A full 22 x 24 storage building ready to install is the perfect bulk storage solution or equine shelter. Our 22x24x13 AG Series Storage Shelter fits the bill. Built on a Professional grade 2 3/8 in. steel frame, every frame tube and connector goes through a proprietary 13 step steel surface prep process for maximum durability. Premium powder coat is baked for an even finish that will not chip, peel, rust or corrode. Advanced engineered ripstop tough woven polyethylene fabric is triple layered, heat bonded for ultimate 4 season performance. Hot air fused seams are 100% waterproof, UV treated inside, outside and in between with added fade blockers, anti aging and anti fungal agents. High profile white interior provides enhanced illumination. Easy to set up and take down as needed with slip fit connectors and best in class swedged tubing. Double Zippered door panels allow easy access from both ends and deliver drive through options. Heavy duty corner braces and rugged Ratchet Tite tensioning enables quick cover installation. Easy Slide Cross Rail system locks down and squares up frames for initial and continuous frame to fabric fit. Structure requires no building permits in most cases. Check local ordinances before installation. Comes ready to install. Great for horses, hay, bulk storage, equipment and much more.
shield-check Warranty: 1 Year Limited

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

A full 22 x 24 storage building ready to install is the perfect bulk storage solution or equine shelter. Our 22x24x13 AG Series Storage Shelter fits the bill. Built on a Professional grade 2 3/8 in. steel frame, every frame tube and connector goes through a proprietary 13 step steel surface prep process for maximum durability. Premium powder coat is baked for an even finish that will not chip, peel, rust or corrode. Advanced engineered ripstop tough woven polyethylene fabric is triple layered, heat bonded for ultimate 4 season performance. Hot air fused seams are 100% waterproof, UV treated inside, outside and in between with added fade blockers, anti aging and anti fungal agents. High profile white interior provides enhanced illumination. Easy to set up and take down as needed with slip fit connectors and best in class swedged tubing. Double Zippered door panels allow easy access from both ends and deliver drive through options. Heavy duty corner braces and rugged Ratchet Tite tensioning enables quick cover installation. Easy Slide Cross Rail system locks down and squares up frames for initial and continuous frame to fabric fit. Structure requires no building permits in most cases. Check local ordinances before installation. Comes ready to install. Great for horses, hay, bulk storage, equipment and much more.
  • Fabric corner boots protect livestock from ratchets and tie-downs
  • Easy Slide Cross Rail system lock down and square up frames and bolt hardware for every connection point
  • Heavy duty corner braces on corner ribs and rugged Ratchet Tite tensioningenables quick cover installation
  • Slip fit connectors and swedged tubing make for easy assembly, bolt hardware at every connection ensures a solid structure
  • Professional grade 2-3/8 in. / 6 cm outside diameter all steel frame, bondedwith thermoset baked on powder-coated finish prevents chipping,peeling, rust and corrosion
  • Our Equine Run-In-Sheds are constructed using high grade heat treated steel

Manuals

Assembly Manuals

Additional Resources

Specifications

More Information
General
SKU58542
Specifications
Assembly ManualDownload (PDF)
Size22 x 24 ft.
Details
BrandShelterLogic
SeriesRun-In Shelter
StylePeak
MaterialStandard Polyethylene 9 oz
ColorGreen
Frame ColorGray
Assembly RequiredYes
Hardware KitYes

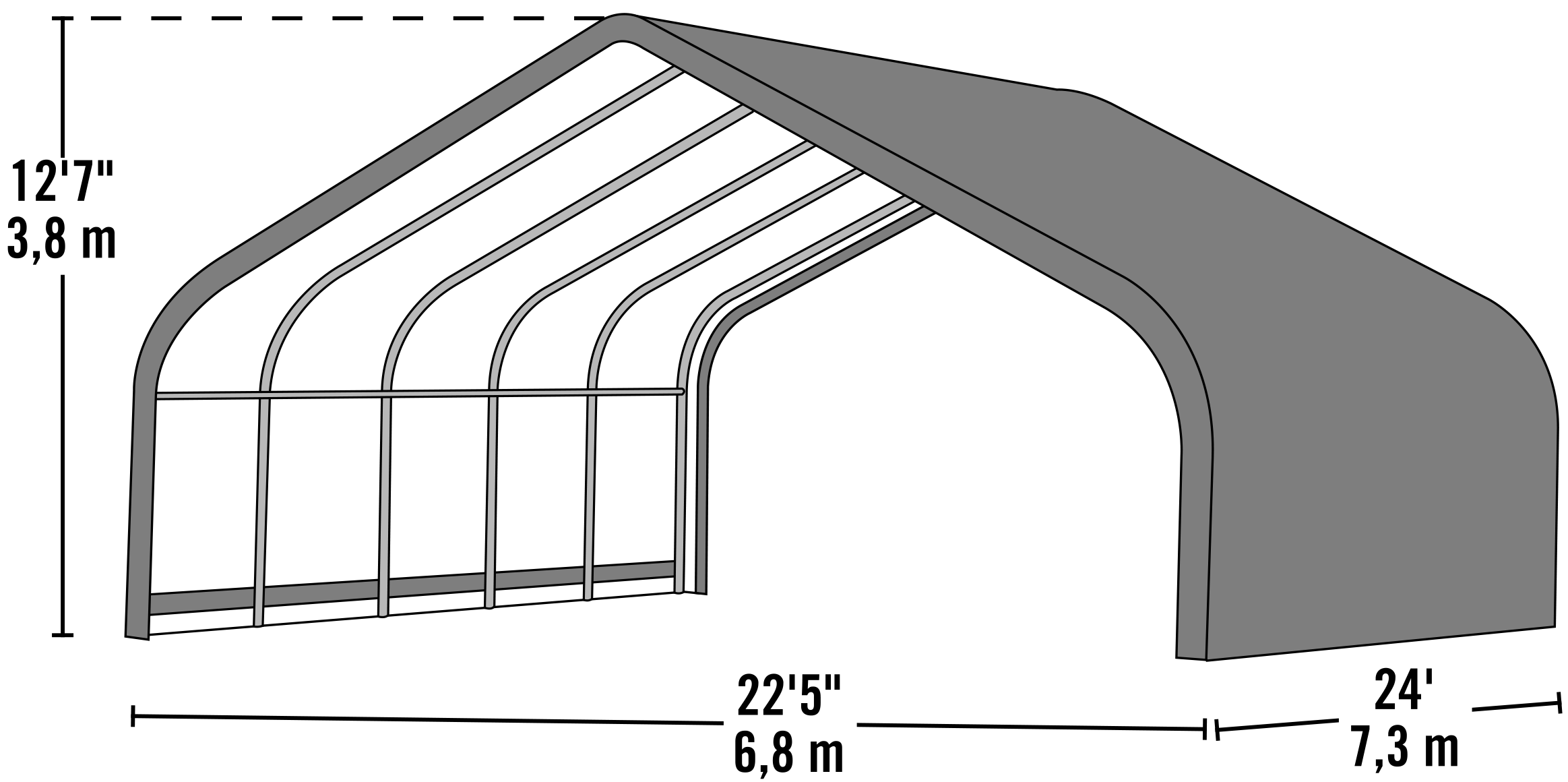

Dimensions
Width22 ft.
Length24 ft.
Height13 ft.
Total Storage Area540.21 sq. ft.
Total Storage Volume5014 cu. ft.
Rib Tubing Diameter2.36 in.
Assembled Exterior Dimensions Width270.7 in.
Assembled Exterior Dimensions Depth287.36 in.
Assembled Exterior Dimensions Height150.5 in.
Assembled Interior Dimensions Width265.98 in.
Assembled Interior Dimensions Depth282.64 in.
Assembled Interior Dimensions Height148.14 in.
Door / Entrance Width Bottom94 in.
Wall Height66.12 in.
Peak Height84.38 in.
Warranty/Certifications
Warranty1 Year Limited
Water-ResistantYes
Proposition 65No
