ShelterCoat Custom Peak Shelter, 8 ft. x 8 ft. x 8 ft. Standard PE 9 oz. Gray

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 25.24ms
  • bvseo-msg: HTTP status code of 404 was returned;
Model #:
In stock
Jump to a section...
Product Overview

Do you have questions about this product? Our Customer Service team is here to help!

Product Overview

Assembly Manual

Download PDF

Additional Resources

ShelterCoat™ garages are the ideal compact storage solution for ATV's, lawn and garden equipment, small tractors, patio furniture, pool supplies, tools and equipment and bulk storage. Choose from the largest selection of premium powdercoated steel frame, fabric shelters in the industry! With THOUSANDS of choices we have a shelter to custom fit any storage need at an affordable price.
  • Frame constructed of heavy duty 1-5/8 in. diameter steel
  • Premium powder coat finish protects frame from corrosion and rust
  • Ripstop tough advanced engineered polyethylene fabric cover is UV treated inside, outside, and in between. Heat welded seams, not stitched, are 100% waterproof.
  • ShelterLock stabilizers at every rib connection for rock-solid strength and stability
  • Ratchet Tite tension system and Easy-Slide cross rails keep the cover smooth and taut
  • Bolt-together hardware at every connection point ensures maximum strength and durability
  • Universal steel foot plates for easy and solid connection to ground anchors, cement, or pony walls
  • Manufacturer recommends one anchor per leg - see included Anchor Guide for more information.
Product Details
Assembly ManualDownload (PDF)
Product Overview
MaterialStandard Polyethylene 9 oz
Frame ColorGray
Door Type2 Double Zippered Doors, Front and Rear
Assembly RequiredYes
Hardware KitYes
Included ItemsFrame, Cover, Hardware

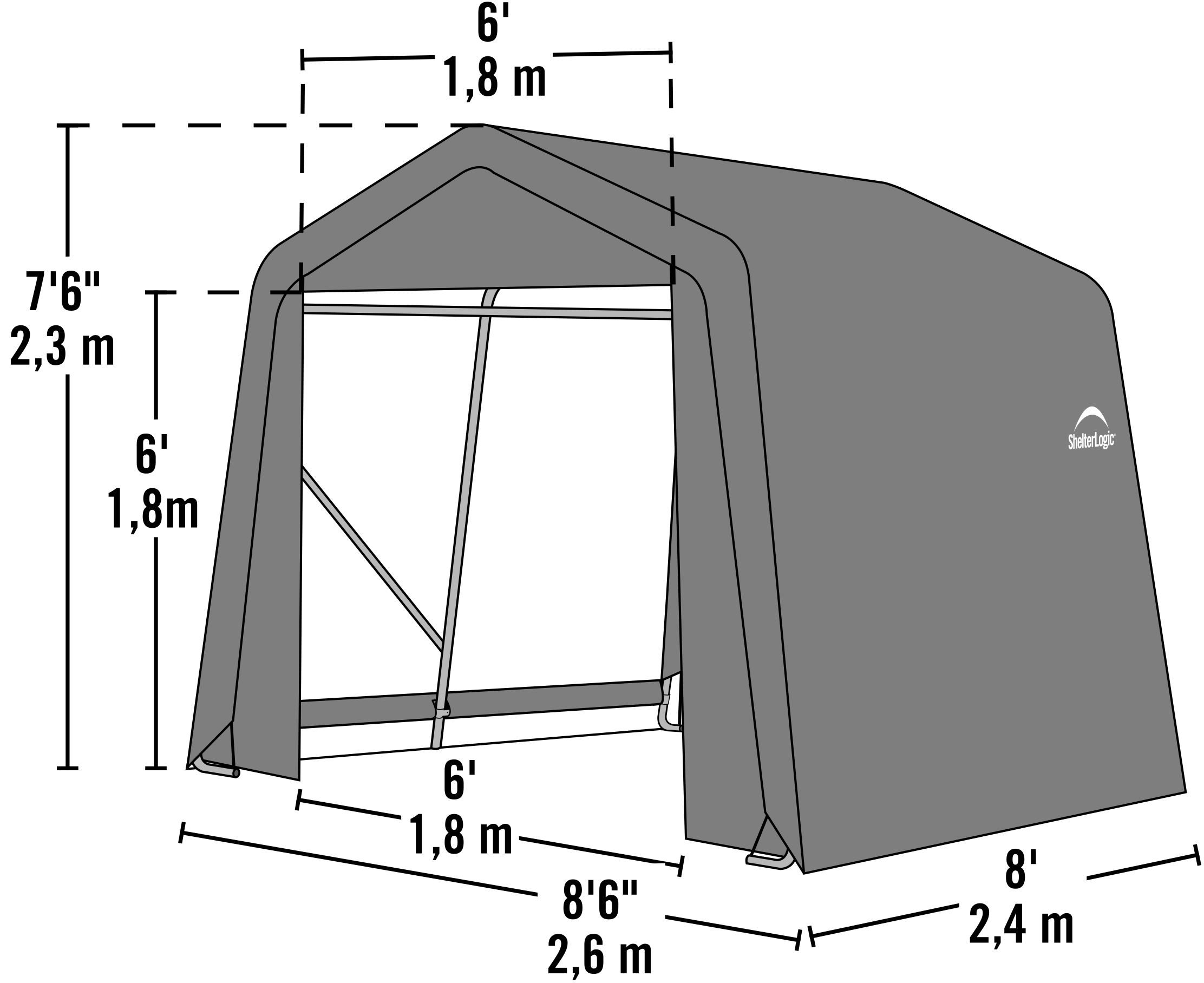

Width8 ft.
Length8 ft.
Height8 ft.
Size8 x 8 x 8 ft.
Total Storage Area66 sq. ft.
Total Storage Volume388 cu. ft.
Rib Tubing Diameter1.65 in.
Assembled Exterior Dimensions Width104.1 in.
Assembled Exterior Dimensions Depth97.4 in.
Assembled Exterior Dimensions Height89.4 in.
Assembled Interior Dimensions Width100.8 in.
Assembled Interior Dimensions Depth94.1 in.
Assembled Interior Dimensions Height87.7 in.
Door Opening Width Top72 in.
Door / Entrance Width Bottom72 in.
Door / Entrance Height Outside72 in.
Wall Height69.86 in.
Peak Height20.84 in.
Warranty1 Year Limited
Proposition 65No
Prop65 Warning

Warning: Cancer and Reproductive harm
For more information, visit

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 2.37ms
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;
Questions & Answers

i need to replace cover part #802603 for shed in a box..what is its size and cost, how do i acquire assembly instructions for this kit

Asked by: tjfaiola
Hello, The Part #802603 corresponds to a 10x10x8 peak style shed in grey. This is packaged in Cover Kit #90504. We have emailed you the re-installation instructions for the cover. Thank you
Answered by: Customer Service
Date published: 2023-02-13

Is there a heavy duty cover to replace a 802493 cover? What is the cost of the 802494 cover and a heavy duty replacement cover, if that is an option? What is the different in their thicknesses. Do you have a repair kit for a minor rip in this cover?

Asked by: David James
Hello, The standard cover kit replacement for model 70423 (8x8x8 Shed in a box) would be $109.99 plus shipping. The heavy duty option would be $315.99 plus shipping. The standard comes with a 1 year warranty while the heavy duty comes with a 10 year pro-rated warranty on the cover and 3 year pro-rated warranty on the ends. The life expectancy would be about double. We do have a patch kit which is 6" x12" and 10.00 each. If you have any additional questions please let us know. Thank you
Answered by: ShelterLogic
Date published: 2023-02-13
